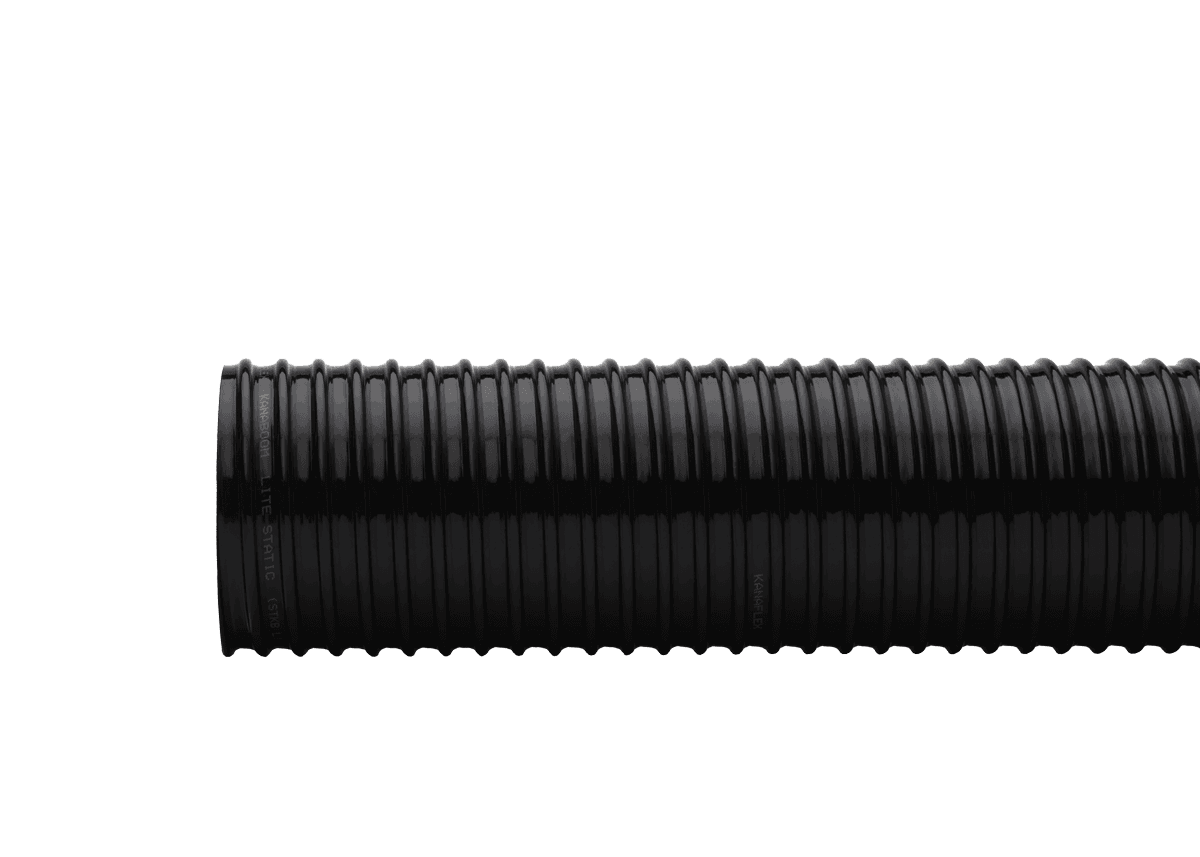

flexVAC™ lite U Boom ST (STKBLITE)

Medium-duty wet & dry material remote hose with grounding wire

Ideal for diverse applications. Lightweight, flexible, and abrasion-resistant, with a static copper wire for dissipating charges. Suitable for hydro-vac trucks, vacuum trucks, general construction with rock, gravel, sand, and crushed concrete, as well as industrial vac equipment, roof vac, dry fertilizer, and petcoke.

flexVAC™ lite U Boom ST (STKBLITE)

FEATURES

Lightweight and flexible in sub-zero temperatures. Abrasive resistant polyurethane tube provides increased lifetime, prevents material build-up and provides quiet operation. Static copper wire in construction dissipates static charge when connected to a grounded system. External helix provides for easy drag.

APPLICATION

Bulk Unloading, Cement Plant, Coal Dust, Fly Ash, Grain Vac, Industrial Plant Services General Use, Mining General Use, Railcar Unloading, Street Sweeper, Vacuum Truck, Waste Management General Use

CONSTRUCTION

Flexible abrasion polyurethane liner, rigid PVC helix, smooth bore, PVC corrugated O.D. with static dissipating materials and grounding wire.

TEMPERATURE RANGE

-40°F to 140°F / -40°C to 60°C

AVAILABLE SIZES

Inside Diameter

Minimum Bend Radius

Working Pressure

Vacuum Rating

Weight

Standard Length

in / mm

72°F (22°C)
in / mm

72°F (22°C)
PSI / bar

72°F (22°C)
inHg / kPa

lb/ft / kg/m

ft / m

1-1/2 / 38.1

2.0 / 51

35 / 2.41

29.0 / 98.2

0.39 / 0.58

100 / 30.5

2 / 50.8

2.5 / 64

27 / 1.86

29.0 / 98.2

0.55 / 0.82

100 / 30.5

2-1/2 / 63.5

4.5 / 114

27 / 1.86

29.8 / 100.9

0.75 / 1.12

100 / 30.5

3 / 76.2

5.5 / 140

25 / 1.72

29.0 / 98.2

1.10 / 1.64

60, 100 / 18.3, 30.5

4 / 101.6

6.5 / 165

20 / 1.38

28.0 / 94.8

1.60 / 2.38

50, 100 / 15.2, 30.5

5 / 127.0

11.0 / 279

20 / 1.38

28.0 / 94.8

2.75 / 4.09

50, 100 / 15.2, 30.5

6 / 152.4

11.0 / 279

20 / 1.38

28.0 / 94.8

3.80 / 5.66

50, 100 / 15.2, 30.5

8 / 203.2

16.0 / 406

20 / 1.38

27.0 / 91.4

5.38 / 8.01

50 / 15.2

*Over flexing or repeated flexing of hose within 18″ (457 mm) of fitting is a common cause of hose failure. Installing a 12″-14″ (305-356 mm) section of our Banding Coil at the end of the hose should be considered. Kanaflex will not be responsible for damage to hose due to over flexing.

COMPATIBLE ACCESSORIES
