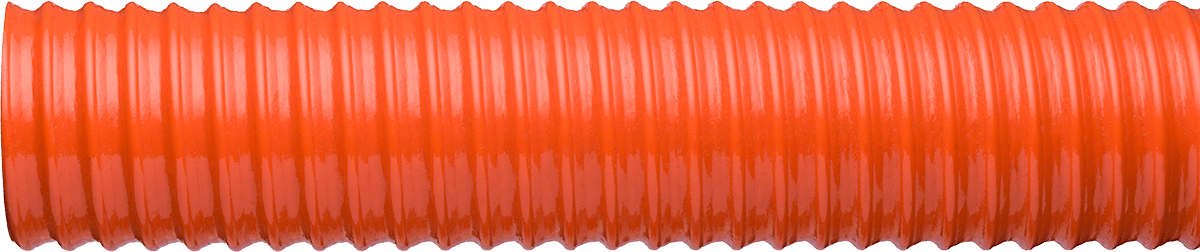

flexVAPOR™ lite 101 (101PSUVOR)

General vapor, water suction and discharge hose

An adaptable solution for diverse applications. Constructed with flexible PVC, it ensures durability with solid wall construction and UV inhibitors. Ideal for methane gas recovery at landfills, connecting rigid pipes, and repairing broken lines.

flexVAPOR™ lite 101 (101PSUVOR)

FEATURES

Lightweight and flexible hose constructed with flexible PVC. The solid wall construction and extra UV inhibitors provide increased durability. External helix provides for easy drag. Specifically designed as a methane gas recovery hose for landfills. The smooth bore allows for precise flow because no irregularities in the wall can cause interruptions. Smooth bore also promotes drainability.

APPLICATION

Landfill (methane gas)

CONSTRUCTION

Flexible PVC, rigid PVC helix, smooth bore, corrugated O.D.

TEMPERATURE RANGE

-13°F to 140°F / -25°C to 60°C

AVAILABLE SIZES

Inside Diameter

Minimum Bend Radius

Working Pressure

Vacuum Rating

Weight

Standard Length

in / mm

72°F (22°C)
in / mm

72°F (22°C)
PSI / bar

72°F (22°C)
inHg / kPa

lb/ft / kg/m

ft / m

2-3/8 / 60.3

3.5 / 89

35 / 2.41

29.8 / 100.9

0.64 / 0.95

100 / 30.5

3-1/2 / 88.9

7.0 / 178

30 / 2.07

29.8 / 100.9

1.10 / 1.64

100 / 30.5

4-1/2 / 114.3

9.0 / 229

30 / 2.07

28.0 / 94.8

1.70 / 2.53

100 / 30.5

*Over flexing or repeated flexing of hose within 18″ (457 mm) of fitting is a common cause of hose failure. Installing a 12″-14″ (305-356 mm) section of our Banding Coil at the end of the hose should be considered. Kanaflex will not be responsible for damage to hose due to over flexing.

COMPATIBLE ACCESSORIES

Download Data Sheet
