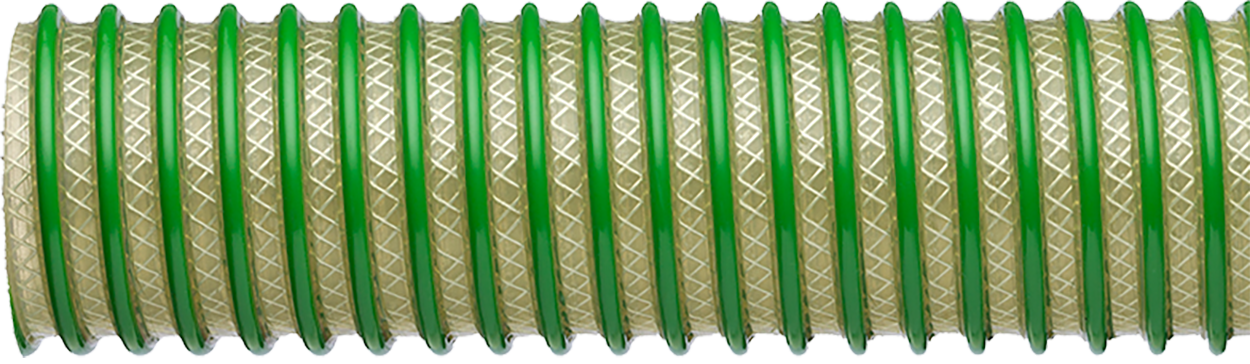

flexFUEL™ U 120 ST (ST120UAPDH)

All purpose polyurethane tank truck drop hose

An exceptional solution for various fuels. Lightweight and flexible, with a static dissipating polyurethane inner and outer tube, it resists gasoline, biodiesel, ethanol, kerosene, and diesel. Ideal for gravity drop applications with a clear tube for visual flow confirmation.

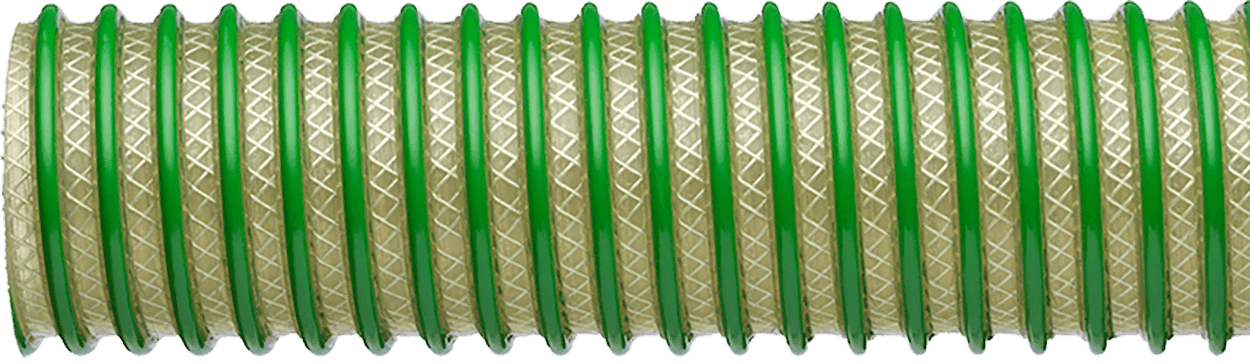

flexFUEL™ U 120 ST (ST120UAPDH)

FEATURES

Lightweight and flexible even in sub-zero temperatures. Static dissipating polyurethane inner and outer tube provides maximum resistance to gasoline, biodiesel (up to B100 compliant with ASTM D6751), ethanol (E85 to E100), kerosene, diesel and ASTM fuel oils. Clear tube allows visual confirmation of flow.

APPLICATION

Gasoline Terminal, General Tank Truck

CONSTRUCTION

Non-permeable polyurethane inner and outer tube with synthetic braiding, smooth bore, corrugated O.D., PVC helix for easy drag, clear static dissipating tube and multi-strand copper static wire providing maximum protection against static discharge.

TEMPERATURE RANGE

-52°F to 140°F / -47°C to 60°C

AVAILABLE SIZES

Inside Diameter

Minimum Bend Radius

Working Pressure

Vacuum Rating

Weight

Standard Length

in / mm

72°F (22°C)
in / mm

72°F (22°C)
PSI / bar

72°F (22°C)
inHg / kPa

lb/ft / kg/m

ft / m

2 / 50.8

5.0 / 127

65 / 4.48

29.8 / 100.9

0.95 / 1.41

60, 100 / 18.3, 30.5

3 / 76.2

6.3 / 160

65 / 4.48

29.8 / 100.9

1.40 / 2.08

60, 100 / 18.3, 30.5

4 / 101.6

7.0 / 178

65 / 4.48

29.8 / 100.9

1.87 / 2.78

60, 100 / 18.3, 30.5

*Over flexing or repeated flexing of hose within 18″ (457 mm) of fitting is a common cause of hose failure. Installing a 12″-14″ (305-356 mm) section of our Banding Coil at the end of the hose should be considered. Kanaflex will not be responsible for damage to hose due to over flexing.

COMPATIBLE ACCESSORIES
