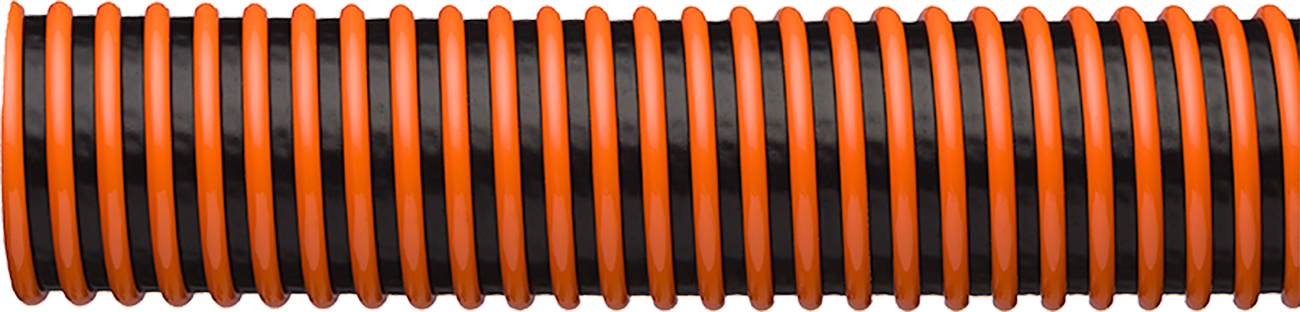

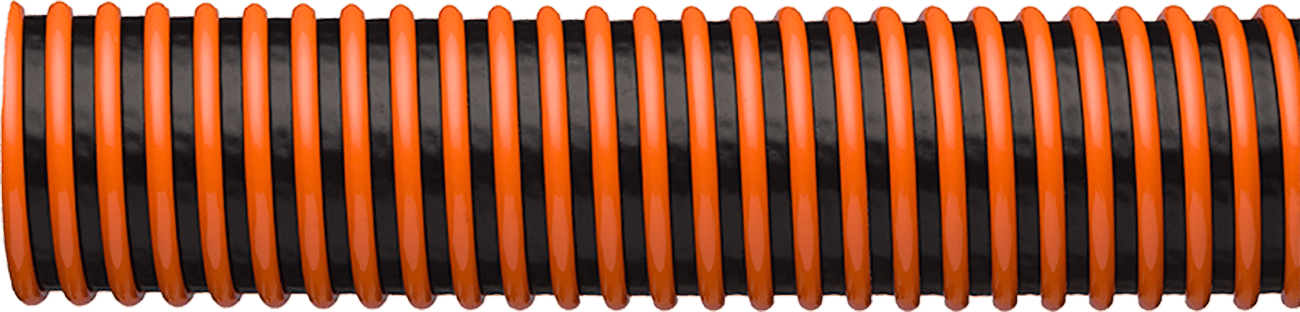

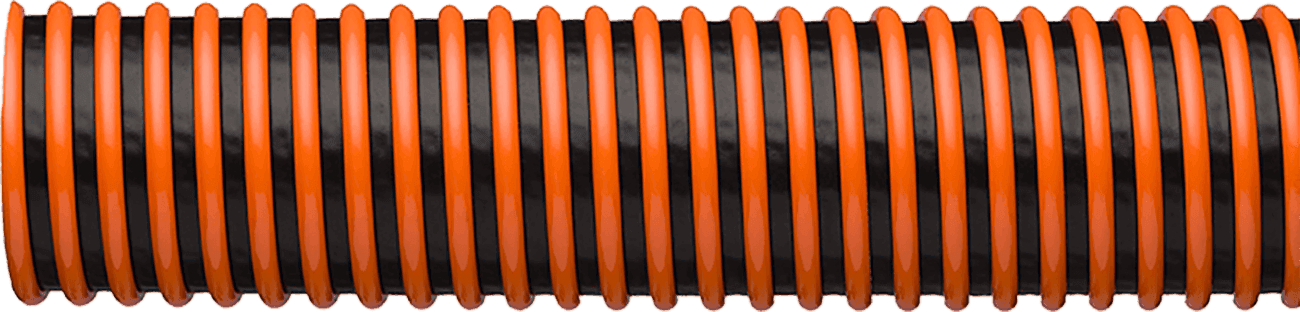

flexFUEL™ lite 120 ST (ST120LT)

All purpose tank truck drop hose

A lightweight and flexible petroleum hose . Featuring a nitrile rubber static dissipating tube and grounding wire for maximum static resistance. Perfect for gasoline gravity drops of naphtha, kerosene, oil, diesel, and ethanol blends with an external helix for easy handling.

flexFUEL™ lite 120 ST (ST120LT)

FEATURES

Lightweight and flexible. Nitrile rubber static dissipating tube and static grounding wire provide maximum static resistance when connected to a grounded system. Construction makes it up to 50% lighter than the average rubber drop hose. External helix provides for easy drag. Rated for up to 40% aromatic content.

APPLICATION

Gasoline Terminal, General Tank Truck, Plant, Tank Scale

CONSTRUCTION

Nitrile rubber static dissipating tube, rigid PVC helix, synthetic braiding, smooth bore, static grounding wire, corrugated O.D.

TEMPERATURE RANGE

-30°F to 140°F / -34°C to 60°C

AVAILABLE SIZES

Inside Diameter

Minimum Bend Radius

Working Pressure

Vacuum Rating

Weight

Standard Length

in / mm

72°F (22°C)
in / mm

72°F (22°C)
PSI / bar

72°F (22°C)
inHg / kPa

lb/ft / kg/m

ft / m

2 / 50.8

5.0 / 127

65 / 4.48

29.8 / 100.9

1.13 / 1.68

60, 100 / 18.3, 30.5

3 / 76.2

6.0 / 152

65 / 4.48

29.8 / 100.9

1.37 / 2.04

60, 100 / 18.3, 30.5

4 / 101.6

8.0 / 203

65 / 4.48

29.8 / 100.9

2.16 / 3.21

60, 100 / 18.3, 30.5

*Over flexing or repeated flexing of hose within 18″ (457 mm) of fitting is a common cause of hose failure. Installing a 12″-14″ (305-356 mm) section of our Banding Coil at the end of the hose should be considered. Kanaflex will not be responsible for damage to hose due to over flexing.

COMPATIBLE ACCESSORIES
