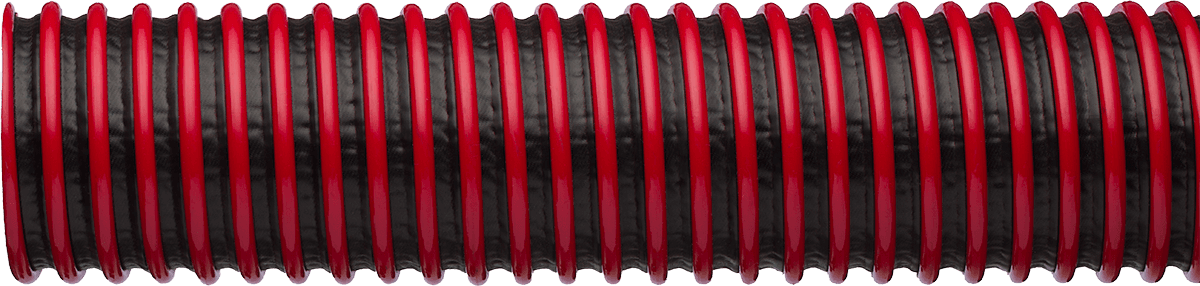

flexFUEL™ HP 120 ST (ST120HP)

High Pressure Petroleum Hose

A high pressure petroleum hose featuring a nitrile rubber static dissipating tube and grounding wire for maximum static resistance. Perfect for gasoline gravity drops of naphtha, kerosene, oil, diesel, and ethanol blends with an external helix for easy handling.

FEATURES

Lightweight and flexible. Nitrile rubber static dissipating tube and static grounding wire provide maximum static resistance when connected to a grounded system. Construction makes it up to 50% lighter than the average rubber drop hose. External helix provides for easy drag. Rated for up to 40% aromatic content.

APPLICATION

Fracking, Gasoline Terminal, General Tank Truck

CONSTRUCTION

Nitrile rubber static dissipating tube, rigid PVC helix, synthetic braiding, smooth bore, static grounding wire, corrugated O.D.

TEMPERATURE RANGE

-30°F to 140°F / -34°C to 60°C

NOTE

Minimum Runs: 3" ID - 300 ft minimum run. 4" ID - 300 ft minimum run.

AVAILABLE SIZES

Inside Diameter

Minimum Bend Radius

Working Pressure

Vacuum Rating

Weight

Standard Length

in / mm

72°F (22°C)
in / mm

72°F (22°C)
PSI / bar

72°F (22°C)
inHg / kPa

lb/ft / kg/m

ft / m

3 / 76.2

6.0 / 152

150 / 10.34

29.8 / 100.9

1.55 / 2.31

60, 100 / 18.3, 30.5

4 / 101.6

8.0 / 203

150 / 10.34

29.8 / 100.9

2.60 / 3.87

60, 100 / 18.3, 30.5

*Over flexing or repeated flexing of hose within 18″ (457 mm) of fitting is a common cause of hose failure. Installing a 12″-14″ (305-356 mm) section of our Banding Coil at the end of the hose should be considered. Kanaflex will not be responsible for damage to hose due to over flexing.

COMPATIBLE ACCESSORIES

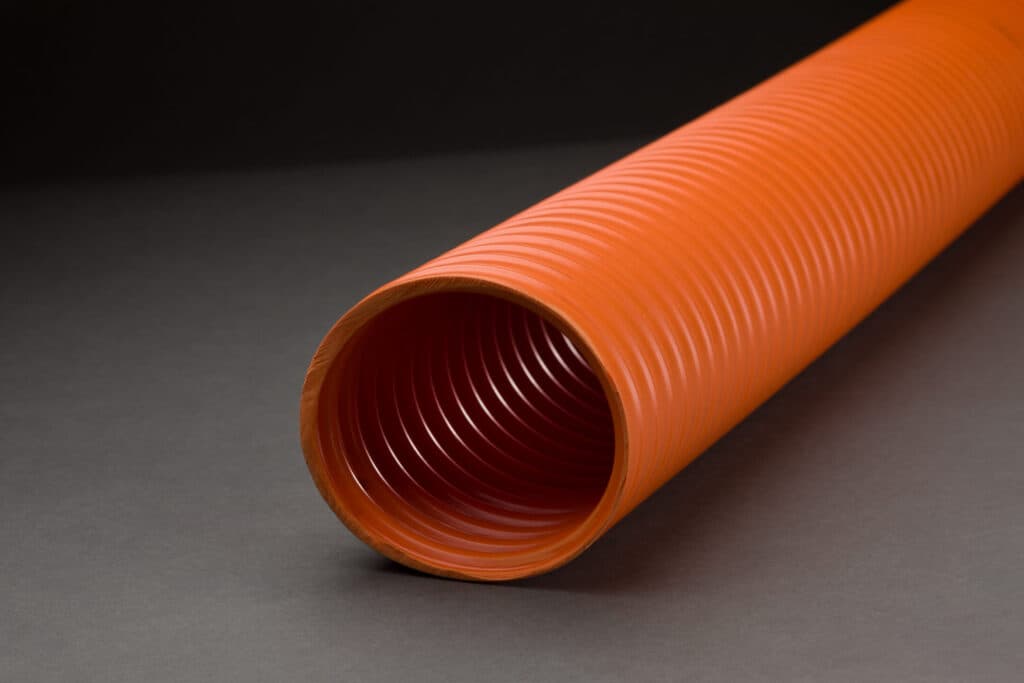

Banding Sleeve

Banding Coil
