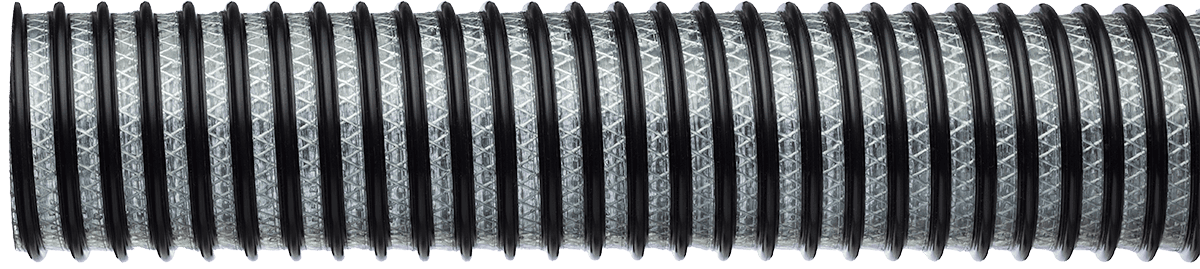

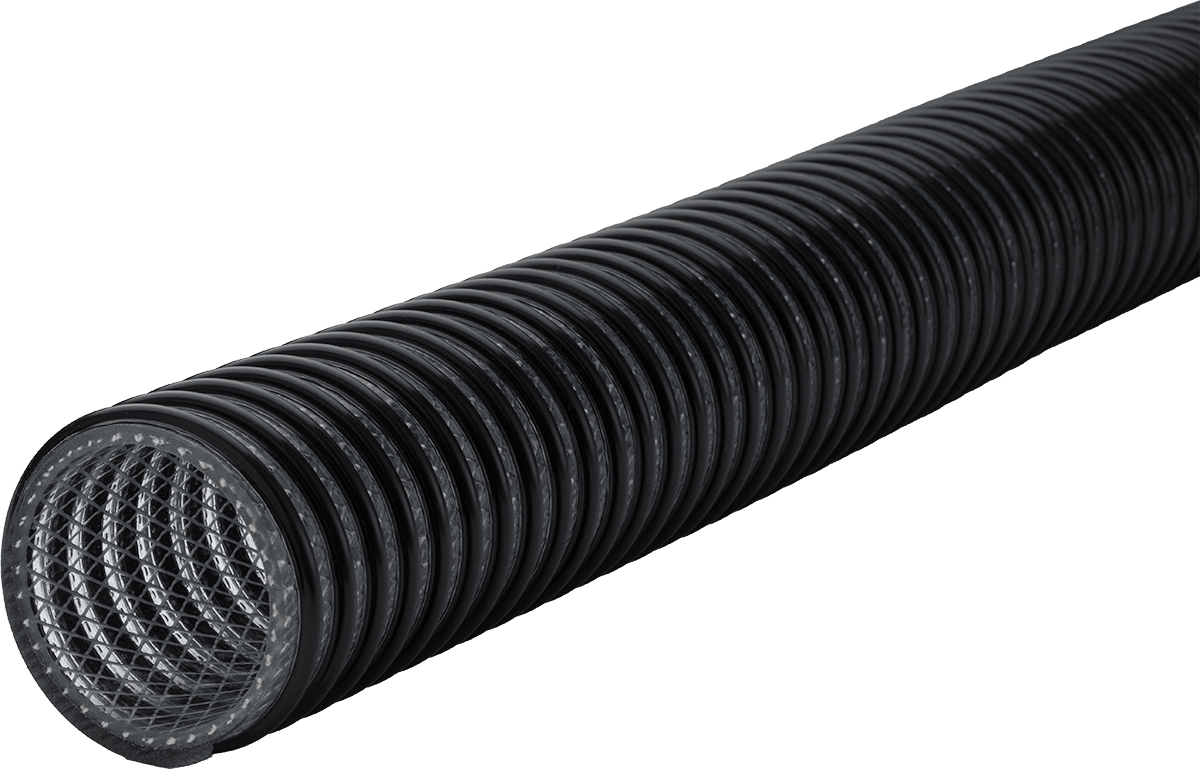

flexFORCE™ CW (KLCWB)

Reinforced cold weather suction and discharge hose

A versatile solution designed for extreme cold conditions. Lightweight with cold weather PVC and synthetic braiding for flexibility and durability. Ideal for liquid fertilizer spreading in agriculture and fish suction and ice slinging in the fishing industry.

flexFORCE™ CW (KLCWB)

FEATURES

Lightweight and flexible hose constructed with cold weather PVC, making it perfect for the most demanding cold conditions. The synthetic braiding gives the hose increased flexibility and durability. External helix provides for easy drag. Rated for both suction and discharge. Clear sidewall permits visual check of material flow.

APPLICATION

Ag General Use, Bilge, Irrigation, Marine General Use, Mining General Use, Waste Management General Use, Water Pumping, Water Suction

CONSTRUCTION

Flexible cold weather PVC, rigid PVC helix, synthetic braiding, smooth bore, corrugated O.D.

TEMPERATURE RANGE

-40°F to 140°F / -40°C to 60°C

NOTE

Minimum Runs: 1.5" ID - 2,000 ft minimum run or half min, 4 week lead time. 2" ID - 1,200 ft minimum run or half min, 4 week lead time. 3" ID - 1,000 ft minimum run or half min, 4 week lead time. 4" ID - 700 ft minimum run or half min, 4 week lead time. 6" ID - 500 ft minimum run or half min, 4 week lead time. 8" ID - 300 ft minimum run or half min, 4 week lead time. 10" ID - 300 ft minimum run or half min.

AVAILABLE SIZES

Inside Diameter

Minimum Bend Radius

Working Pressure

Vacuum Rating

Weight

Standard Length

in / mm

72°F (22°C)
in / mm

72°F (22°C)
PSI / bar

72°F (22°C)
inHg / kPa

lb/ft / kg/m

ft / m

2 / 50.8

3.0 / 76

70 / 4.83

28.0 / 94.8

0.70 / 1.04

60, 100 / 18.3, 30.5

3 / 76.2

5.0 / 127

70 / 4.83

28.0 / 94.8

1.13 / 1.68

60, 100 / 18.3, 30.5

4 / 101.6

7.0 / 178

60 / 4.14

28.0 / 94.8

1.74 / 2.59

60, 100 / 18.3, 30.5

6 / 152.4

9.0 / 229

50 / 3.45

28.0 / 94.8

3.88 / 5.77

60, 100 / 18.3, 30.5

*Over flexing or repeated flexing of hose within 18″ (457 mm) of fitting is a common cause of hose failure. Installing a 12″-14″ (305-356 mm) section of our Banding Coil at the end of the hose should be considered. Kanaflex will not be responsible for damage to hose due to over flexing.

COMPATIBLE ACCESSORIES

Download Data Sheet
