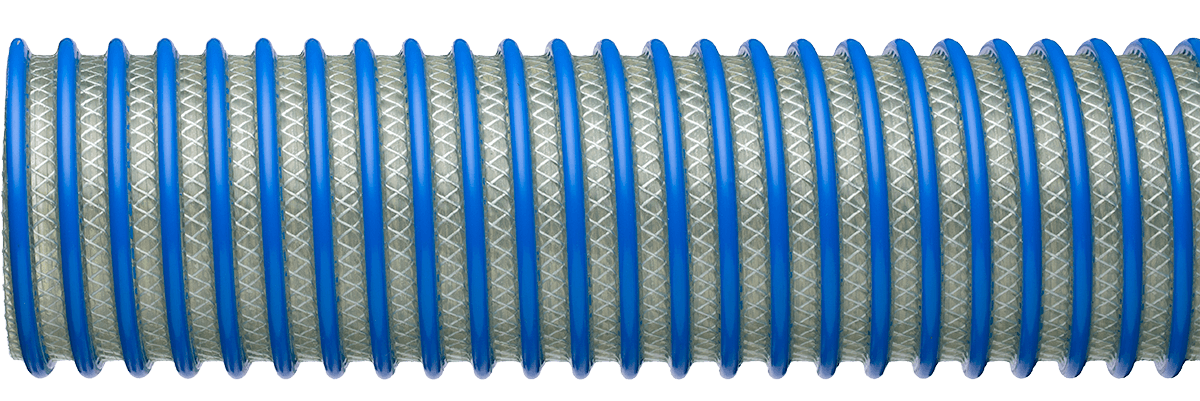

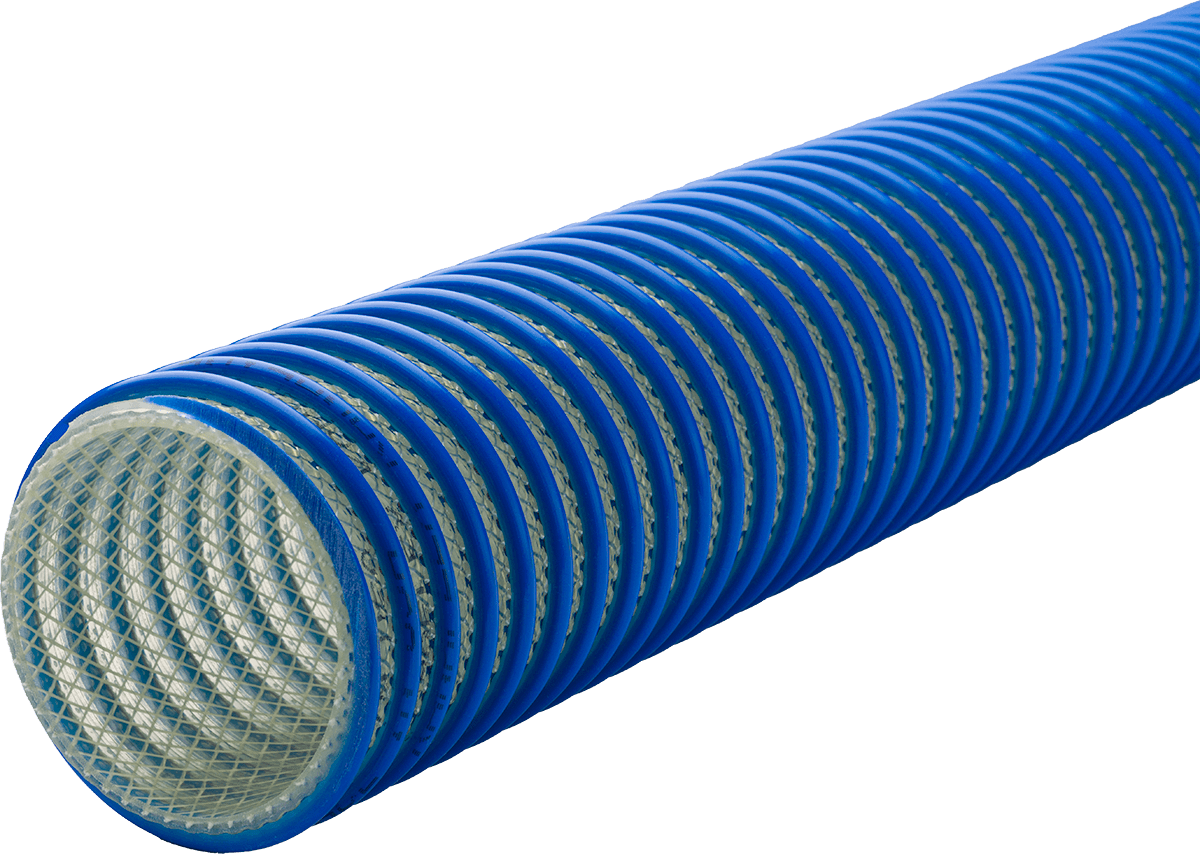

flexFORCE™ Blue (KANALINEBLUE)
Reinforced cold weather suction and discharge hose
A versatile solution for combined vacuum, higher working pressures, and increased flexibility. Lightweight and flexible with an external helix for easy drag, it's ideal for colder environments and liquid fertilizer applications. Constructed with flexible cold weather PVC, a rigid PVC helix, synthetic braiding, smooth bore, and corrugated outer diameter, it ensures reliable performance and visual material flow checks.
FEATURES
APPLICATION
CONSTRUCTION
TEMPERATURE RANGE
NOTE
AVAILABLE SIZES
Inside Diameter
Minimum Bend Radius
Working Pressure
Vacuum Rating
Weight
Standard Length
in / mm
72°F (22°C)
in / mm
72°F (22°C)
PSI / bar
72°F (22°C)
inHg / kPa
lb/ft / kg/m
ft / m
1-1/2 / 38.1
2.0 / 51
75 / 5.17
28.0 / 94.8
0.47 / 0.70
60, 100 / 18.3, 30.5
2 / 50.8
3.0 / 76
70 / 4.83
28.0 / 94.8
0.70 / 1.04
60, 100 / 18.3, 30.5
3 / 76.2
5.0 / 127
70 / 4.83
28.0 / 94.8
1.13 / 1.68
60, 100 / 18.3, 30.5
4 / 101.6
7.0 / 178
60 / 4.14
28.0 / 94.8
1.74 / 2.59
60, 100 / 18.3, 30.5
6 / 152.4
9.0 / 229
50 / 3.45
28.0 / 94.8
3.88 / 5.77
60, 100 / 18.3, 30.5
8 / 203.2
15.0 / 381
40 / 2.76
28.0 / 94.8
5.54 / 8.24
15, 20, 25, 40 / 4.6, 6.1, 7.6, 12.2
10 / 254.0
24.5 / 622
30 / 2.07
28.0 / 94.8
8.68 / 12.92
20, 25, 40 / 6.1, 7.6, 12.2
12 / 304.8
43.0 / 1092
20 / 1.38
25.0 / 84.7
10.30 / 15.33
20 / 6.1
*Over flexing or repeated flexing of hose within 18″ (457 mm) of fitting is a common cause of hose failure. Installing a 12″-14″ (305-356 mm) section of our Banding Coil at the end of the hose should be considered. Kanaflex will not be responsible for damage to hose due to over flexing.
