Hoses

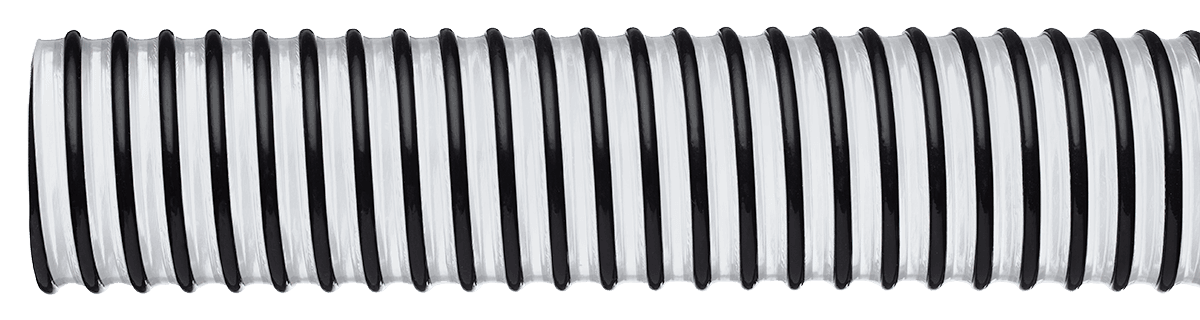

flexFLO™ lite 100 CW (100 CWFLX)

Cold weather water suction and discharge hose

A versatile solution for demanding cold conditions. Constructed with cold weather PVC, it offers flexibility, easy drag with an external helix, and suitability for both suction and discharge. Ideal for water pumping on construction sites and widely applicable in agricultural and marine industries.

flexFLO™ lite 100 CW (100 CWFLX)

FEATURES

Lightweight and flexible hose constructed with cold weather PVC, making it perfect for the most demanding cold conditions. External helix provides for easy drag. Rated for both suction and discharge. Clear sidewall permits visual check of material flow.

APPLICATION

Ag General Use, Marine General Use, Waste Management General Use, Water Pumping

CONSTRUCTION

Cold weather PVC, rigid PVC helix, smooth bore, corrugated O.D.

TEMPERATURE RANGE

-40,°F to ,140,°F

NOTE

Minimum Runs: 3" ID - 1,000 ft minimum run. 4" ID - 800 ft minimum run. 5" ID - 600 ft minimum run. 6" ID - 600 ft minimum run. Any combination ID - 1500 lbs across product line. (Discuss with your sales representative)

AVAILABLE SIZES

Inside Diameter

Minimum Bend Radius

Working Pressure

Vacuum Rating

Weight

Standard Length

Inches

72°F, inches

72°F, PSI

72°F, In Hg

Lbs/Ft

Ft

6

10.6

20

28

3.1

100

6

10.6

20

28

3.1

50

5

10.5

20

28

2.5

100

5

10.5

20

28

2.5

50

4

6.5

20

28

1.52

100

3

5

25

29

1

100

2

2.5

27

29

0.5

100

1.5

2

35

29

0.35

100

1

1.5

40

29

0.18

100

*Over flexing or repeated flexing of hose within 18″ of fitting is a common cause of hose failure. Installing a 12″-14″ section of our Banding Coil at the end of the hose should be considered. Kanaflex will not be responsible for damage to hose due to over flexing.
