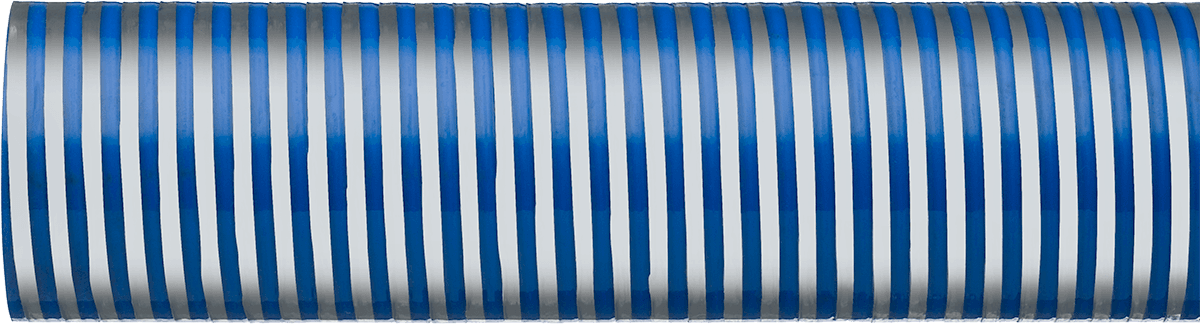

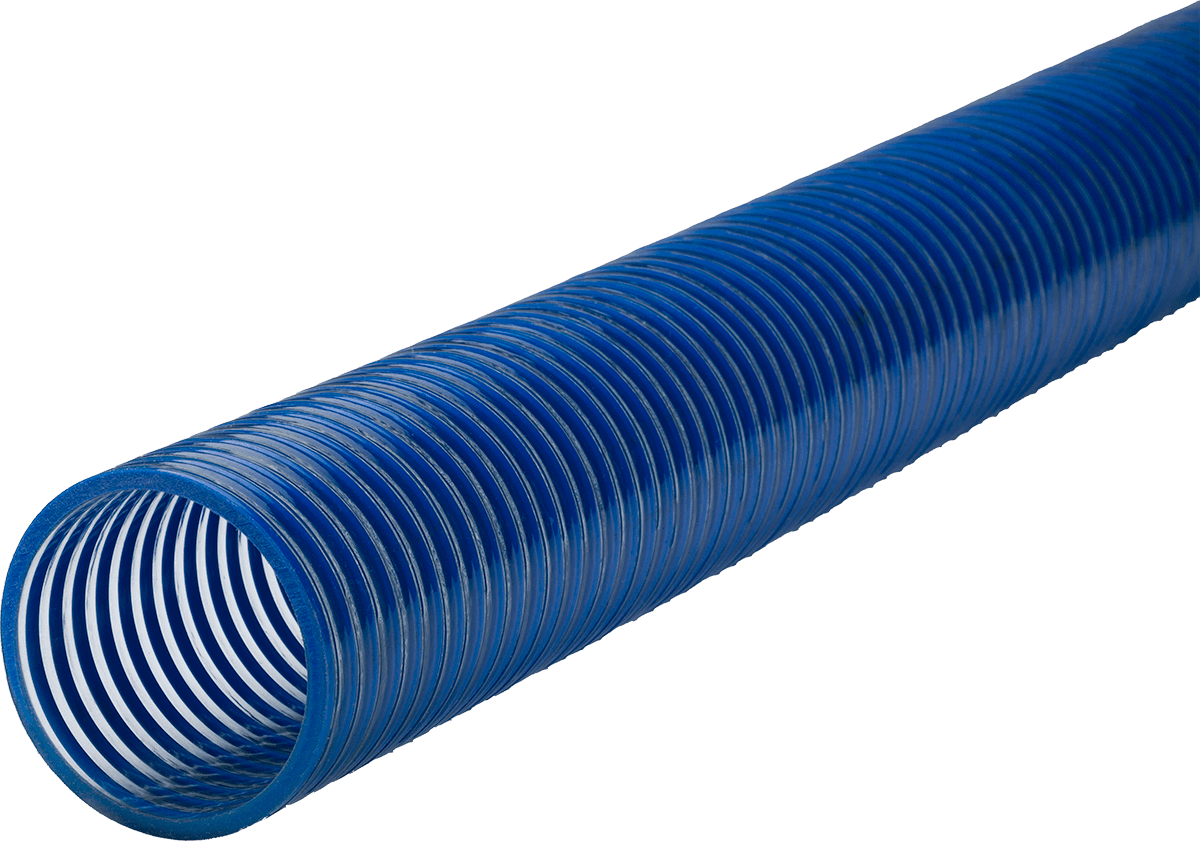

flexFLO™ 116 (116Blue)
Cold weather water suction and discharge hose
An exceptional solution for demanding conditions. Designed to excel in cold weather, this hose ensures reliable water and suction performance with its durable construction.
FEATURES
APPLICATION
CONSTRUCTION
TEMPERATURE RANGE
AVAILABLE SIZES
Inside Diameter
Minimum Bend Radius
Working Pressure
Vacuum Rating
Weight
Standard Length
in / mm
72°F (22°C)
in / mm
72°F (22°C)
PSI / bar
72°F (22°C)
inHg / kPa
lb/ft / kg/m
ft / m
1 / 25.4
1.5 / 38
70 / 4.83
29.8 / 100.9
0.25 / 0.37
100 / 30.5
1-1/4 / 31.8
2.0 / 51
70 / 4.83
29.8 / 100.9
0.30 / 0.45
100 / 30.5
1-1/2 / 38.1
2.5 / 64
56 / 3.86
29.8 / 100.9
0.38 / 0.57
100 / 30.5
2 / 50.8
3.0 / 76
50 / 3.45
29.8 / 100.9
0.64 / 0.95
100 / 30.5
2-1/2 / 63.5
4.5 / 114
50 / 3.45
29.8 / 100.9
0.90 / 1.34
100 / 30.5
3 / 76.2
6.0 / 152
50 / 3.45
29.8 / 100.9
1.10 / 1.64
100 / 30.5
4 / 101.6
10.0 / 254
42 / 2.90
29.8 / 100.9
1.85 / 2.75
100 / 30.5
6 / 152.4
13.0 / 330
28 / 1.93
28.0 / 94.8
3.37 / 5.02
50, 100 / 15.2, 30.5
*Over flexing or repeated flexing of hose within 18″ (457 mm) of fitting is a common cause of hose failure. Installing a 12″-14″ (305-356 mm) section of our Banding Coil at the end of the hose should be considered. Kanaflex will not be responsible for damage to hose due to over flexing.
