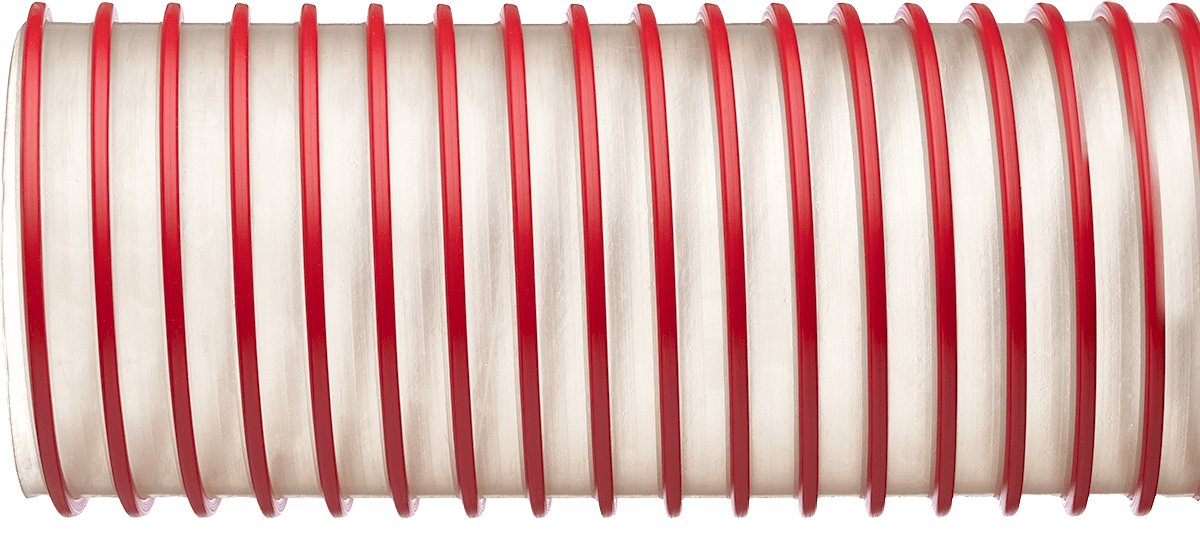

flexDUCT™ U 150 (150UDH)

Medium-duty polyurethane blower and ducting hose

A versatile solution for medium-duty applications. Lightweight, flexible, and abrasion-resistant, it is designed for various ducting and blower needs.

flexDUCT™ U 150 (150UDH)

FEATURES

Lightweight and flexible. External helix provides for easy drag. Abrasion-resistant polyurethane and smooth bore eliminate material build-up.

APPLICATION

Cement Plant, Concrete Surfacing Dust, Cotton, Mulch Blowing

CONSTRUCTION

Flexible clear polyurethane, rigid PVC helix, smooth bore, corrugated O.D.

TEMPERATURE RANGE

-40°F to 140°F / -40°C to 60°C

NOTE

Minimum Runs: 7" ID - 500 ft minimum run. 8" ID - 400 ft minimum run.

AVAILABLE SIZES

Inside Diameter

Minimum Bend Radius

Working Pressure

Vacuum Rating

Weight

Standard Length

in / mm

72°F (22°C)
in / mm

72°F (22°C)
PSI / bar

72°F (22°C)
inHg / kPa

lb/ft / kg/m

ft / m

2-1/2 / 63.5

2.5 / 64

9 / 0.62

16.0 / 54.2

0.34 / 0.51

50 / 15.2

3 / 76.2

3.0 / 76

8 / 0.55

15.0 / 50.8

0.48 / 0.71

50 / 15.2

4 / 101.6

4.0 / 102

7 / 0.48

12.0 / 40.6

0.70 / 1.04

50 / 15.2

5 / 127.0

5.0 / 127

6 / 0.41

9.0 / 30.5

1.10 / 1.64

50 / 15.2

6 / 152.4

6.0 / 152

5 / 0.34

7.0 / 23.7

1.30 / 1.93

50 / 15.2

7 / 177.8

7.0 / 178

4 / 0.28

6.0 / 20.3

1.56 / 2.32

50 / 15.2

8 / 203.2

8.0 / 203

3 / 0.21

5.0 / 16.9

1.65 / 2.46

50 / 15.2

*Over flexing or repeated flexing of hose within 18″ (457 mm) of fitting is a common cause of hose failure. Installing a 12″-14″ (305-356 mm) section of our Banding Coil at the end of the hose should be considered. Kanaflex will not be responsible for damage to hose due to over flexing.

COMPATIBLE ACCESSORIES

Download Data Sheet
