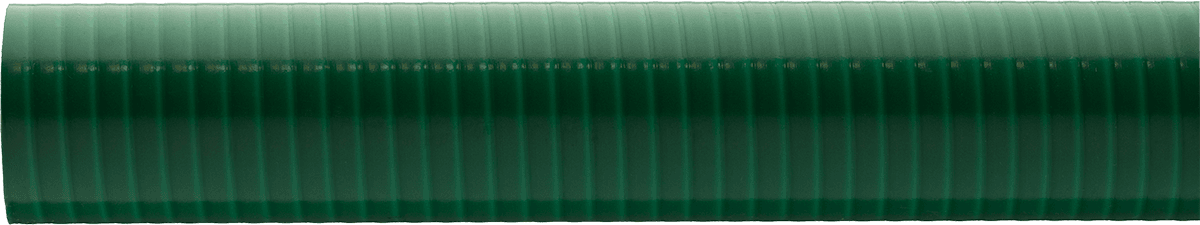

flexFLO™ 114 (114CL/114GR)
Lightweight economical water suction and discharge hose
An economical solution for various agricultural applications such as air seeder, fertilizer sprayer, and irrigation. Lightweight, flexible, and featuring a clear sidewall for visual inspection, it ensures precise flow and optimal drainability.
FEATURES
APPLICATION
CONSTRUCTION
TEMPERATURE RANGE
NOTE
AVAILABLE SIZES
Inside Diameter
Minimum Bend Radius
Working Pressure
Vacuum Rating
Weight
Standard Length
in / mm
72°F (22°C)
in / mm
72°F (22°C)
PSI / bar
72°F (22°C)
inHg / kPa
lb/ft / kg/m
ft / m
1-1/4 / 31.8
3.0 / 76
65 / 4.48
29.8 / 100.9
0.23 / 0.34
100 / 30.5
1-1/2 / 38.1
4.0 / 102
65 / 4.48
29.8 / 100.9
0.28 / 0.42
100 / 30.5
2 / 50.8
5.0 / 127
60 / 4.14
29.8 / 100.9
0.46 / 0.68
100 / 30.5
2-1/2 / 63.5
6.0 / 152
60 / 4.14
29.8 / 100.9
0.66 / 0.98
100 / 30.5
3 / 76.2
8.0 / 203
50 / 3.45
29.8 / 100.9
0.81 / 1.21
100 / 30.5
4 / 101.6
10.0 / 254
45 / 3.10
29.8 / 100.9
1.43 / 2.13
100 / 30.5
*Over flexing or repeated flexing of hose within 18″ (457 mm) of fitting is a common cause of hose failure. Installing a 12″-14″ (305-356 mm) section of our Banding Coil at the end of the hose should be considered. Kanaflex will not be responsible for damage to hose due to over flexing.
