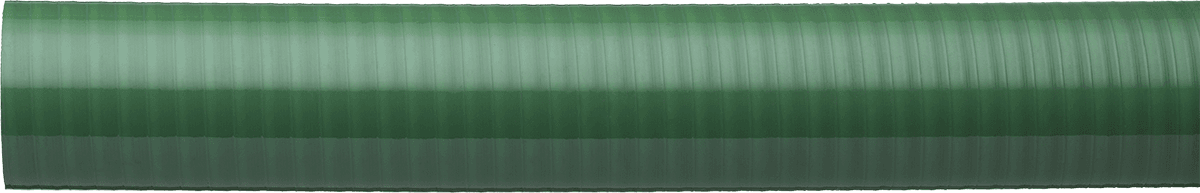

flexFLO™ 112 (112CL/112AG)

Heavy-duty agricultural suction and discharge hose

An ideal solution for various agricultural applications such as air seeder, fertilizer sprayer, and irrigation. Lightweight, flexible, and featuring a clear sidewall for visual inspection, it ensures precise flow and optimal drainability.

FEATURES

Lightweight and flexible water and suction hose. Clear sidewall permits visual check of material flow. The smooth bore allows for precise flow because no irregularities in the wall can cause interruptions. Smooth bore also promotes drainability.

APPLICATION

Ag General Use, Air Seeder, Bilge, Fertilizer Sprayer, Irrigation, Marine General Use, Mining General Use, Trash Pumping, Waste Management General Use, Water Pumping, Water Suction

CONSTRUCTION

Flexible PVC, rigid PVC helix, smooth bore, smooth O.D.

TEMPERATURE RANGE

-13°F to 140°F / -25°C to 60°C

AVAILABLE SIZES

Inside Diameter

Minimum Bend Radius

Working Pressure

Vacuum Rating

Weight

Standard Length

in / mm

72°F (22°C)
in / mm

72°F (22°C)
PSI / bar

72°F (22°C)
inHg / kPa

lb/ft / kg/m

ft / m

1-1/4 / 31.8

3.0 / 76

80 / 5.52

29.8 / 100.9

0.29 / 0.43

100 / 30.5

1-1/2 / 38.1

4.0 / 102

70 / 4.83

29.8 / 100.9

0.39 / 0.58

100 / 30.5

2 / 50.8

5.0 / 127

65 / 4.48

29.8 / 100.9

0.63 / 0.94

100 / 30.5

2-1/2 / 63.5

6.0 / 152

65 / 4.48

29.8 / 100.9

0.87 / 1.29

100 / 30.5

3 / 76.2

8.0 / 203

55 / 3.79

29.8 / 100.9

1.05 / 1.56

100 / 30.5

4 / 101.6

10.0 / 254

50 / 3.45

29.8 / 100.9

1.80 / 2.68

100 / 30.5

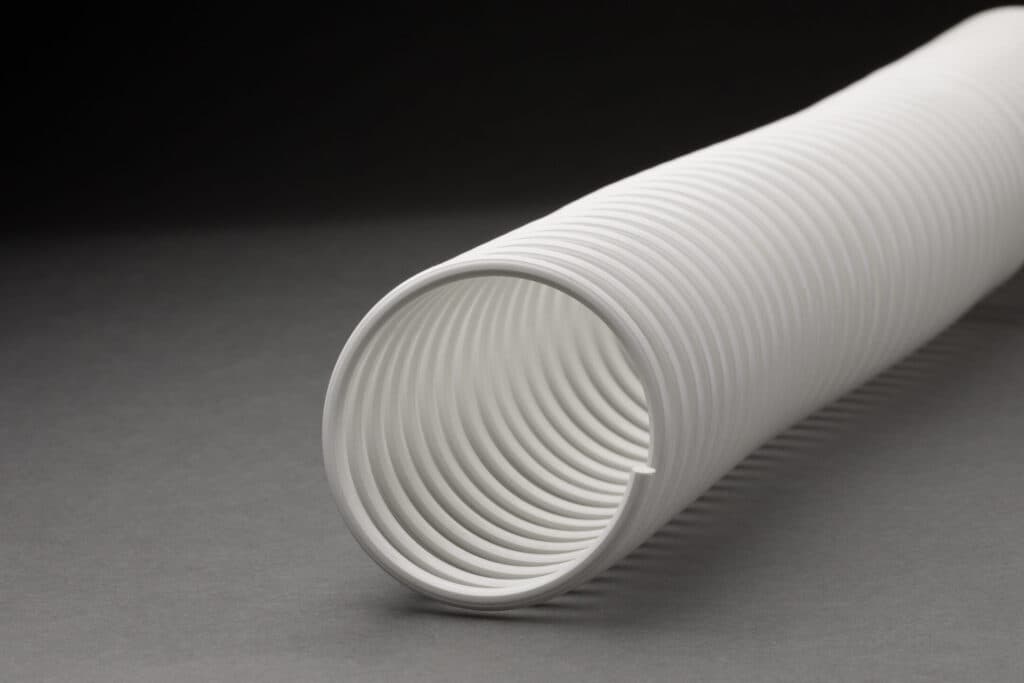

*Over flexing or repeated flexing of hose within 18″ (457 mm) of fitting is a common cause of hose failure. Installing a 12″-14″ (305-356 mm) section of our Banding Coil at the end of the hose should be considered. Kanaflex will not be responsible for damage to hose due to over flexing.
