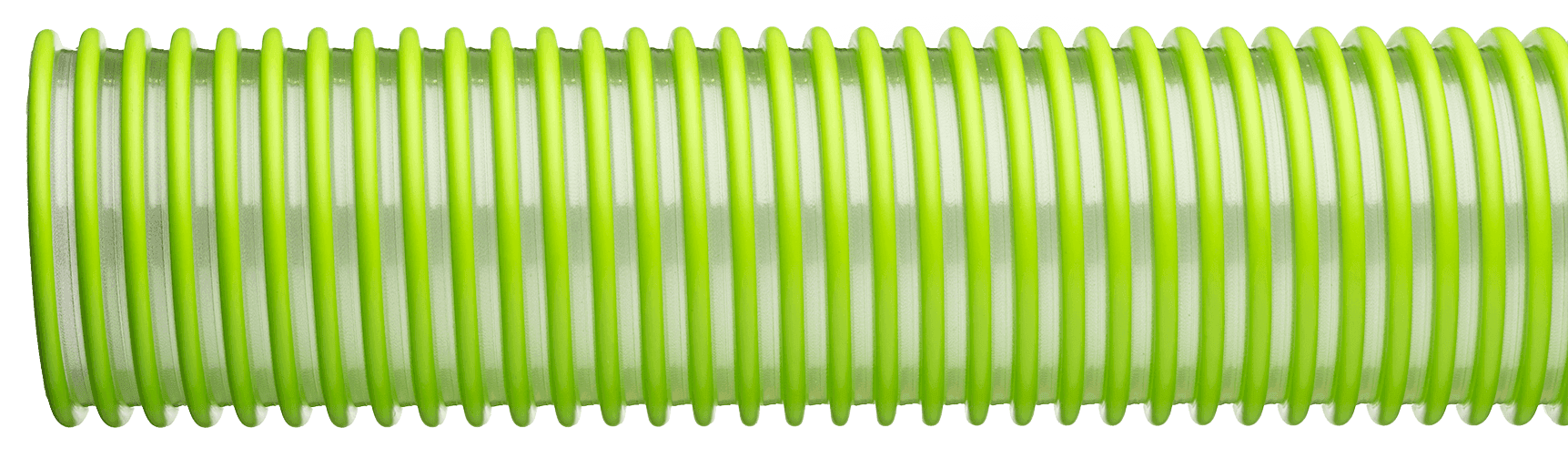

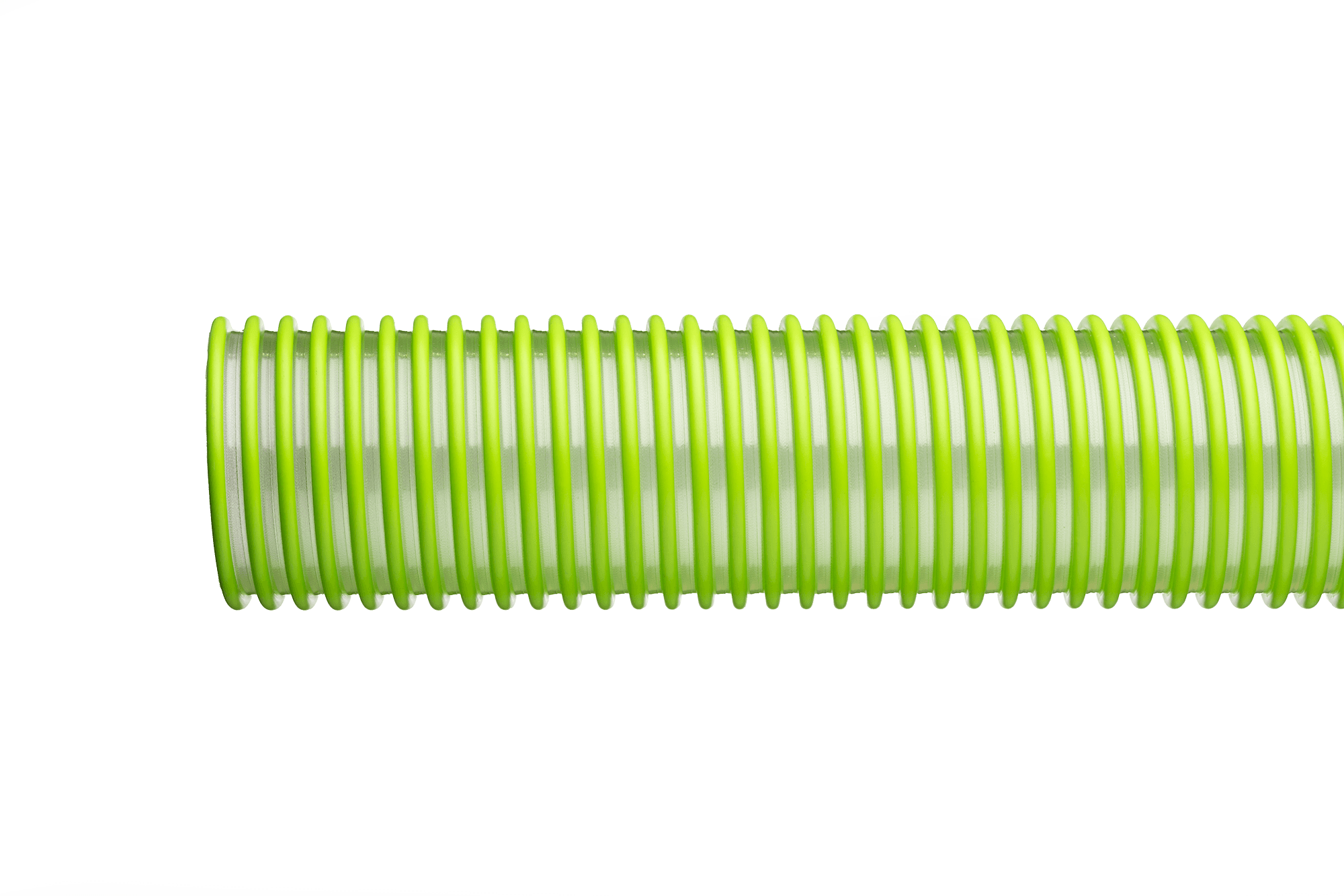

flexDUCT™ U 155 (155U)

Heavy-duty urethane blower and ducting hose

A versatile solution for demanding applications. Lightweight, flexible, and highly abrasion-resistant, with an ABS helix for increased flexibility with less volume. Ideal for mulch blowing, ducting, and ventilation across various industries. The bidirectional design ensures increased maneuverability for the operator.

flexDUCT™ U 155 (155U)

FEATURES

Clear sidewall permits visual check of material flow. The smooth bore allows for precise flow because no irregularities in the wall can cause interruptions. The ABS helix provides increased flexibility, and the bidirectional design provides increased maneuverability. External helix provides for easy drag.

APPLICATION

Mulch Blowing

CONSTRUCTION

Flexible clear polyurethane, ABS helix, smooth bore, corrugated O.D., bidirectional design

TEMPERATURE RANGE

-40°F to 200°F / -40°C to 93°C

NOTE

ABS is rigid when compared to typical hard PVC resin that is commonly used in light weight hose design. This benefit of incorporating ABS as the helix vs hard PVC helix is ABS requires less volume to support the same vacuum and pressure rating than a larger hard PVC Helix.

AVAILABLE SIZES

Inside Diameter

Minimum Bend Radius

Working Pressure

Vacuum Rating

Weight

Standard Length

in / mm

72°F (22°C)
in / mm

72°F (22°C)
PSI / bar

72°F (22°C)
inHg / kPa

lb/ft / kg/m

ft / m

4 / 101.6

6.0 / 152

30 / 2.07

22.0 / 74.5

0.95 / 1.41

50 / 15.2

5 / 127.0

6.0 / 152

26 / 1.79

18.0 / 61.0

0.95 / 1.41

50 / 15.2

*Over flexing or repeated flexing of hose within 18″ (457 mm) of fitting is a common cause of hose failure. Installing a 12″-14″ (305-356 mm) section of our Banding Coil at the end of the hose should be considered. Kanaflex will not be responsible for damage to hose due to over flexing.
