Hoses

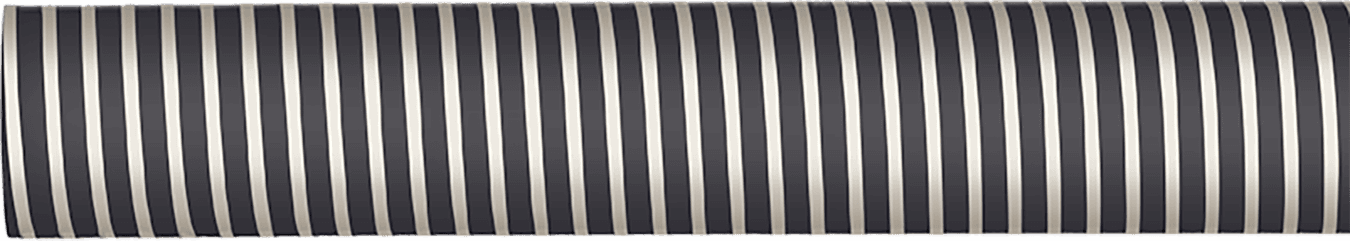

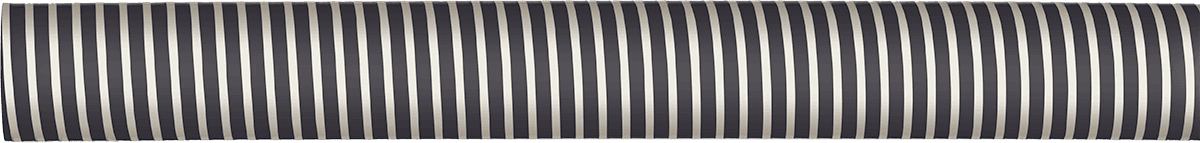

flexFLO™ U 113 (113UVCLBK)

All weather suction and discharge hose

An agile solution for diverse agricultural needs. Lightweight and flexible, its blended polyurethane construction enhances abrasion and UV resistance. Ideal for air seeder, fertilizer sprayer, irrigation, and water pumping applications.

flexFLO™ U 113 (113UVCLBK)

FEATURES

Lightweight and flexible water and suction hose. Improved abrasion and UltraViolet resistance because of the blended polyurethane construction. Clear sidewall permits visual check of material flow. The smooth bore allows for precise flow because no irregularities in the wall can cause interruptions. Smooth bore also promotes drainability.

APPLICATION

Ag General Use, Air Seeder, Bilge, Fertilizer Sprayer, Irrigation, Marine General Use, Mining General Use, Waste Management General Use, Water Pumping

CONSTRUCTION

Flexible PVC blended with polyurethane, rigid PVC helix, smooth bore, smooth O.D.

TEMPERATURE RANGE

-13,°F to ,140,°F

NOTE

Minimum Runs: 1.25" ID - 3000 ft minimum run or 1000 ft, 4 week lead time. 1.5" ID - 2500 ft minimum run or 1000 ft, 4 week lead time. 1.75" ID - 2000 ft minimum run.

AVAILABLE SIZES

Inside Diameter

Minimum Bend Radius

Working Pressure

Vacuum Rating

Weight

Standard Length

Inches

72°F, inches

72°F, PSI

72°F, In Hg

Lbs/Ft

Ft

3

8

55

29.8

1.05

100

2.5

6

65

29.8

0.87

100

2

5

65

29.8

0.63

100

1.75

4.5

65

29.8

0.48

100

1.5

4

70

29.8

0.39

100

1.25

3

80

29.8

0.25

100

1

1.9

86

29.8

0.25

100

*Over flexing or repeated flexing of hose within 18″ of fitting is a common cause of hose failure. Installing a 12″-14″ section of our Banding Coil at the end of the hose should be considered. Kanaflex will not be responsible for damage to hose due to over flexing.

COMPATIBLE ACCESSORIES

Download Data Sheet
