Hoses

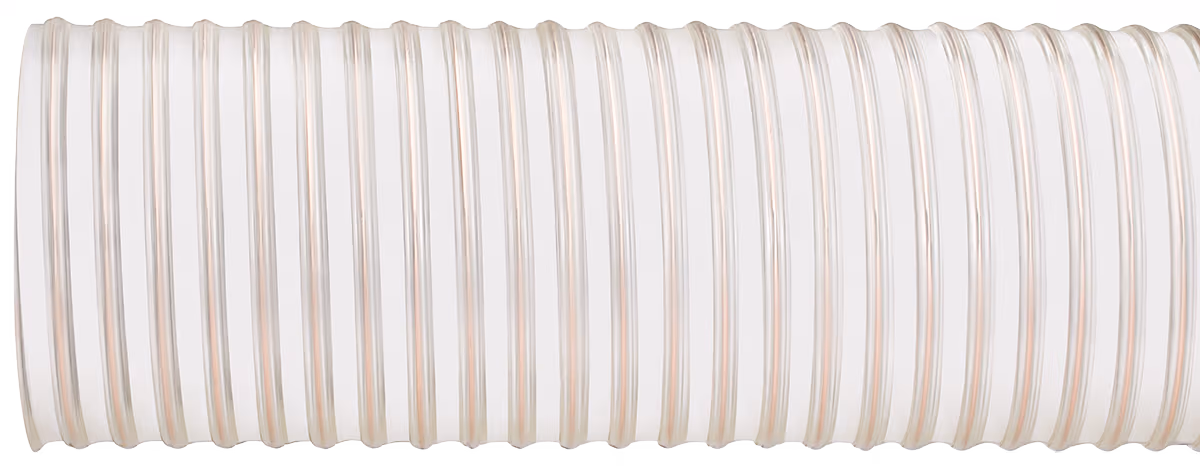

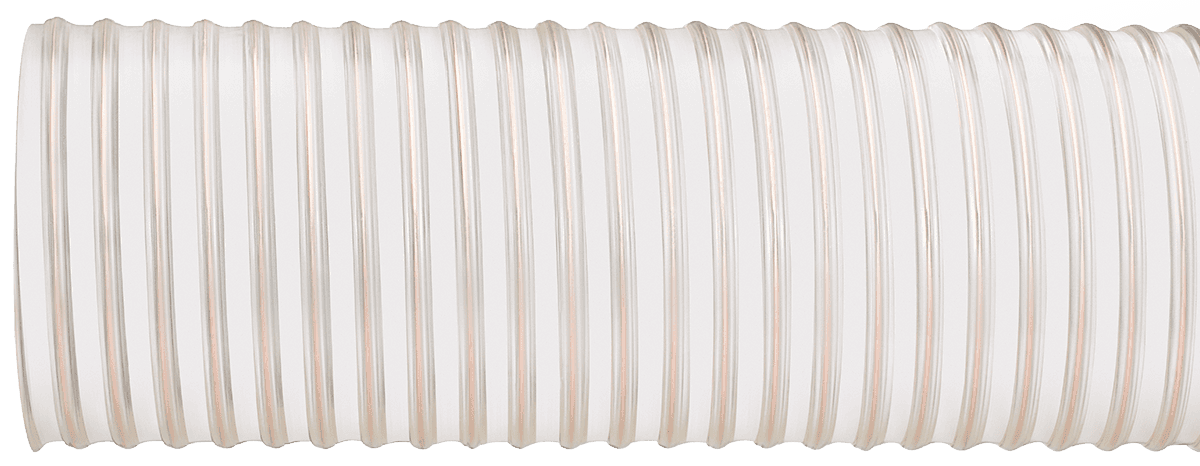

flexDUCT™ U 545 (545U)

A heavy-duty, abrasion-resistant ducting solution. The flexDUCT™ U 545 features a multi-directional, kink-resistant design with a copper-coated steel wire helix for static safety. Ideal for dust collection, vapor recovery, and woodworking, it performs reliably in temperatures from -60°F to 200°F.

flexDUCT™ U 545 (545U)

FEATURES

The multi-directional design allows the hose to flex in multiple directions without kinking or collapsing, making it ideal for dynamic environments where hoses must navigate around obstacles or move with equipment. For safety against static, the hose is also equipped with a copper coded steel wire helix.

APPLICATION

Blower, Coal Dust, Concrete Surfacing Dust, Duct Cleaning, Grass Collection, Landfill (methane gas)

CONSTRUCTION

Flexible clear polyurethane, copper coded steel wire helix, smooth bore, corrugated O.D., bi-directional design.

TEMPERATURE RANGE

-60,°F to ,200,°F

Got questions?

CONTACT USCONTACT USCONTACT US
Download Data Sheet

AVAILABLE SIZES

Inside Diameter

Minimum Bend Radius

Working Pressure

Vacuum Rating

Weight

Standard Length

Inches

72°F, inches

72°F, PSI

72°F, In Hg

Lbs/Ft

Ft

3

5

30

29

0.6

25

4

7

21

28

0.83

25

5

8

19

27

0.93

25

6

9

16

24

1.28

25

7

10

14

20

1.42

25

8

11

12

12

2

25

10

12

10

10

2.3

25

12

15

8

8

3.05

25

*Over flexing or repeated flexing of hose within 18″ of fitting is a common cause of hose failure. Installing a 12″-14″ section of our Banding Coil at the end of the hose should be considered. Kanaflex will not be responsible for damage to hose due to over flexing.
