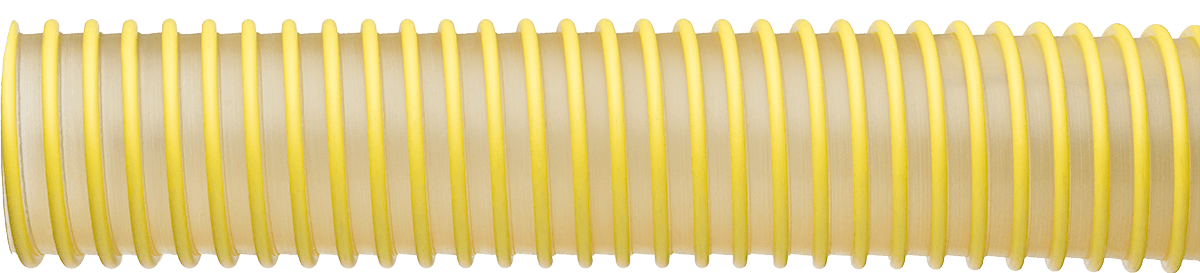

flexVAPOR™ U 120 ST (ST120UACVR)

All purpose tank truck and terminal vapor recovery hose

An adaptable solution for various fuels. Lightweight and flexible, constructed with polyurethane for use with gasoline blends, biodiesel, ethanol, kerosene, diesel, and ASTM fuel oils. Featuring a static dissipating tube and multi-strand copper static wire for ultimate protection against static discharge.

flexVAPOR™ U 120 ST (ST120UACVR)

FEATURES

Lightweight and flexible even in sub-zero temperatures. Polyurethane construction allows use with all gasoline blends, biodiesel (up to B100), ethanol (up to E85; currently testing E100), kerosene, diesel, and ASTM fuel oils. Static dissipating tube combined with multi-strand copper static wire provides the ultimate protection against static discharge. Clear tube allows visual confirmation of fuel backup into the hose.

APPLICATION

Gasoline Terminal, General Tank Truck

CONSTRUCTION

Lightweight clear static dissipating non-permeable polyurethane with smooth bore, corrugated O.D., rigid PVC helix, and static grounding wire.

TEMPERATURE RANGE

-52°F to 140°F / -47°C to 60°C

NOTE

Lead Time: 2" ID only - 4 week lead time. (no minimum order)

AVAILABLE SIZES

Inside Diameter

Minimum Bend Radius

Working Pressure

Vacuum Rating

Weight

Standard Length

in / mm

72°F (22°C)
in / mm

72°F (22°C)
PSI / bar

72°F (22°C)
inHg / kPa

lb/ft / kg/m

ft / m

2 / 50.8

2.0 / 51

9 / 0.62

16.0 / 54.2

0.44 / 0.65

60, 100 / 18.3, 30.5

3 / 76.2

3.0 / 76

8 / 0.55

15.0 / 50.8

0.71 / 1.06

60, 100 / 18.3, 30.5

4 / 101.6

4.0 / 102

7 / 0.48

13.0 / 44.0

0.98 / 1.46

60, 100 / 18.3, 30.5

*Over flexing or repeated flexing of hose within 18″ (457 mm) of fitting is a common cause of hose failure. Installing a 12″-14″ (305-356 mm) section of our Banding Coil at the end of the hose should be considered. Kanaflex will not be responsible for damage to hose due to over flexing.

COMPATIBLE ACCESSORIES

Download Data Sheet
