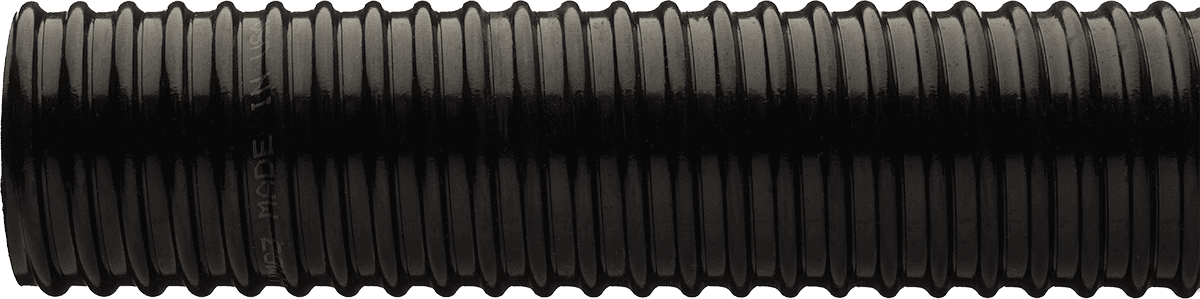

flexVAPOR™ 120 ST (ST120VP)

Gasoline vapor recovery hose

A specialized solution for vapor recovery. Featuring a nitrile rubber static dissipating tube, grounding wire, and smooth bore for precise flow. External helix ensures easy drag.

flexVAPOR™ 120 ST (ST120VP)

FEATURES

Nitrile rubber static dissipating tube and static grounding wire provide maximum static resistance when connected to a grounded system. The smooth bore allows for precise flow because no irregularities in the wall can cause interruptions. External helix provides easy drag.

APPLICATION

Gasoline Terminal, General Tank Truck

CONSTRUCTION

Nitrile rubber, rigid PVC helix, smooth bore, corrugated O.D., static grounding wire

TEMPERATURE RANGE

-40°F to 140°F / -40°C to 60°C

AVAILABLE SIZES

Inside Diameter

Minimum Bend Radius

Working Pressure

Vacuum Rating

Weight

Standard Length

in / mm

72°F (22°C)
in / mm

72°F (22°C)
PSI / bar

72°F (22°C)
inHg / kPa

lb/ft / kg/m

ft / m

2 / 50.8

3.0 / 76

20 / 1.38

29.8 / 100.9

0.61 / 0.91

60, 100 / 18.3, 30.5

3 / 76.2

3.5 / 89

10 / 0.69

29.8 / 100.9

1.00 / 1.49

60, 100 / 18.3, 30.5

4 / 101.6

5.0 / 127

10 / 0.69

29.8 / 100.9

1.70 / 2.53

60, 100 / 18.3, 30.5

*Over flexing or repeated flexing of hose within 18″ (457 mm) of fitting is a common cause of hose failure. Installing a 12″-14″ (305-356 mm) section of our Banding Coil at the end of the hose should be considered. Kanaflex will not be responsible for damage to hose due to over flexing.

COMPATIBLE ACCESSORIES
