Hoses

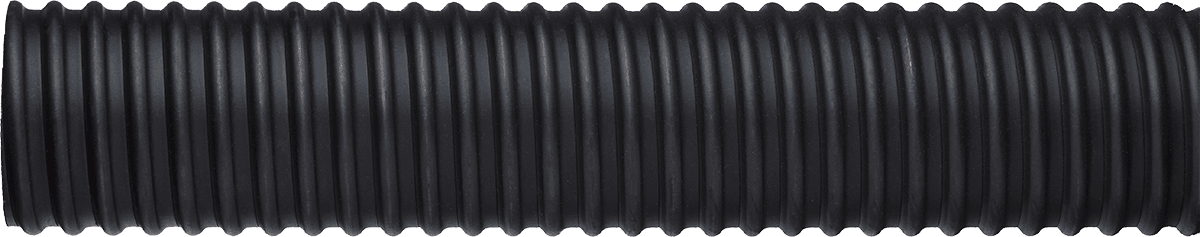

flexVAC™ 180 STAR (ST180 AR)

A robust solution for demanding applications. Lightweight and flexible, the SBR rubber hose with static carbon black and a grounding wire ensures maximum static resistance. Ideal for vacuum trucks handling abrasives like crushed rock, sand, pea gravel, cement powder, dry fertilizer, iron ore, and grains.

flexVAC™ 180 STAR (ST180 AR)

FEATURES

The lightweight and flexible SBR rubber hose blended with static carbon black and a static grounding wire provide maximum static resistance when connected to a grounded system. The smooth bore allows for precise flow because no irregularities in the wall can cause interruptions. External helix provides easy drag.

APPLICATION

Bulk Unloading, Cement Plant, Coal Dust, Fly Ash, Grain Vac, Gravel Removal, Industrial Plant Services General Use, Mining General Use, Vacuum Truck, Waste Management General Use

CONSTRUCTION

SBR rubber blended with static carbon black, rigid PVC helix, smooth bore, with copper wire, corrugated O.D.

TEMPERATURE RANGE

-40,°F to ,140,°F

Got questions?

CONTACT USCONTACT USCONTACT US
Download Data Sheet

AVAILABLE SIZES

Inside Diameter

Minimum Bend Radius

Working Pressure

Vacuum Rating

Weight

Standard Length

Inches

72°F, inches

72°F, PSI

72°F, In Hg

Lbs/Ft

Ft

6

9.2

30

28

3.26

50

6

9.2

30

28

3.26

100

4

4.5

30

29.8

1.84

100

4

4.5

30

29.8

1.84

50

3

3

35

29.8

1.19

100

2

2.5

40

29.8

0.6

100

*Over flexing or repeated flexing of hose within 18″ of fitting is a common cause of hose failure. Installing a 12″-14″ section of our Banding Coil at the end of the hose should be considered. Kanaflex will not be responsible for damage to hose due to over flexing.
