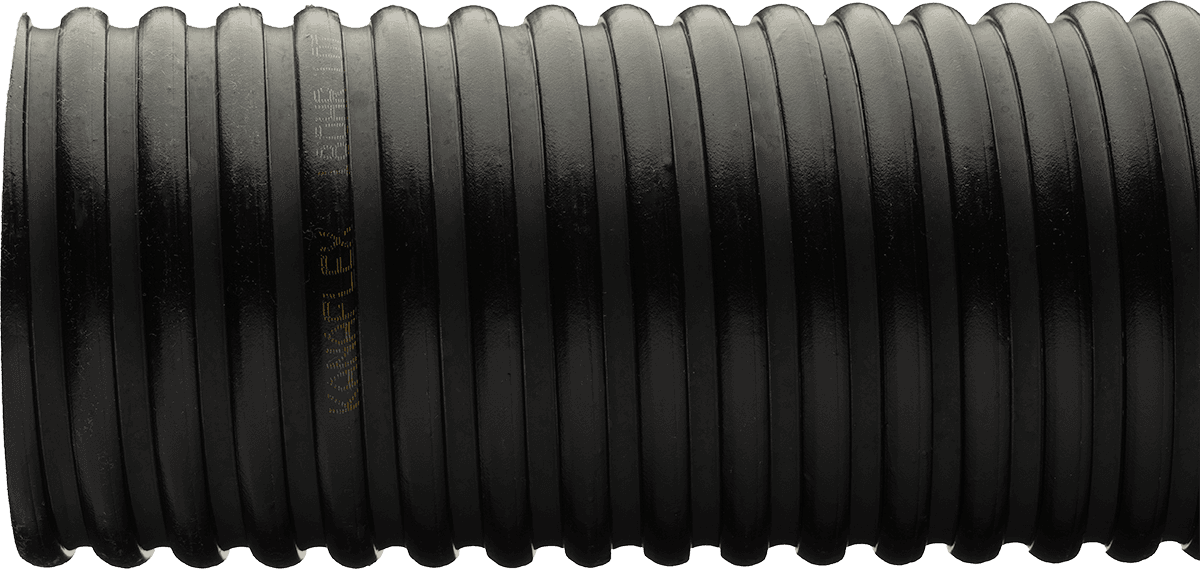

flexVAC™ 180 HR (180HR)

High temperature abrasion resistant suction hose

An ideal solution for heavy-duty suction applications in high-temperature and abrasive environments. Lightweight, flexible, and designed to withstand temperatures up to 220°F, it ensures efficient material handling of fly ash, crushed rock, sand, pea gravel, or cement powder.

FEATURES

Lightweight and flexible heat resistant suction hose designed to sustain temperatures up to 220°F. Integral wire helix can be grounded. External helix provides easy drag. The smooth bore allows for precise flow because no irregularities in the wall can cause interruptions.

APPLICATION

Coal Dust, Fly Ash, Industrial Plant Services General Use, Metal Shavings, Sand Blast Recovery, Vacuum Truck, Waste Management General Use

CONSTRUCTION

EPDM rubber, polyethylene helix, metal helical wire, smooth bore, corrugated O.D.

TEMPERATURE RANGE

-40°F to 220°F / -40°C to 104°C

AVAILABLE SIZES

Inside Diameter

Minimum Bend Radius

Working Pressure

Vacuum Rating

Weight

Standard Length

in / mm

72°F (22°C)
in / mm

72°F (22°C)
PSI / bar

72°F (22°C)
inHg / kPa

lb/ft / kg/m

ft / m

4 / 101.6

5.5 / 140

30 / 2.07

29.8 / 100.9

1.75 / 2.60

50, 100 / 15.2, 30.5

5 / 127.0

9.0 / 229

30 / 2.07

29.0 / 98.2

3.06 / 4.55

50, 100 / 15.2, 30.5

6 / 152.4

9.8 / 249

30 / 2.07

28.0 / 94.8

3.46 / 5.15

50, 100 / 15.2, 30.5

8 / 203.2

15.0 / 381

30 / 2.07

27.0 / 91.4

6.00 / 8.93

50 / 15.2

*Over flexing or repeated flexing of hose within 18″ (457 mm) of fitting is a common cause of hose failure. Installing a 12″-14″ (305-356 mm) section of our Banding Coil at the end of the hose should be considered. Kanaflex will not be responsible for damage to hose due to over flexing.
