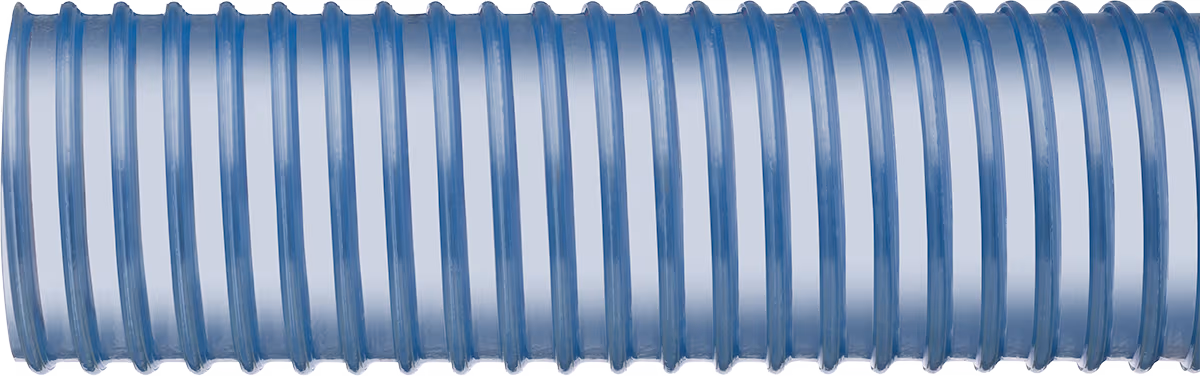

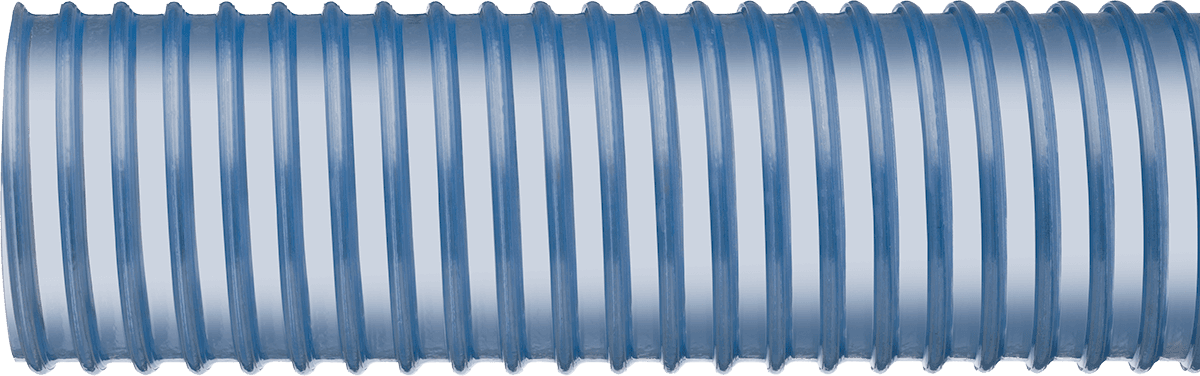

flexFOOD™ lite 200 ST (ST200SFG)

Medium-duty food grade suction and discharge hose

Crafted to FDA and 3-A nontoxic standards. Ideal for pneumatic conveying of lightweight solids, featuring a clear sidewall, static grounding wire, smooth bore for precise flow, and drainability.

FEATURES

The food grade hose is constructed in compliance with FDA and 3-A nontoxic specifications. Clear sidewall permits visual check of material flow. Static grounding wire dissipates static charge when connected to a grounded system. The smooth bore allows for precise flow because no irregularities in the wall can cause interruptions. Smooth bore also promotes drainability.

APPLICATION

Dairy Processing, Food Processing, Pharma Processing, Plastic Processing, Pneumatic Conveying, Vacuum Truck, Waste Management General Use

CONSTRUCTION

Produced entirely of compounds in compliance with FDA and 3-A nontoxic specifications, flexible PVC, rigid PVC helix, multi-strand copper static grounding wire, smooth bore, corrugated O.D.

TEMPERATURE RANGE

-13°F to 140°F / -25°C to 60°C

AVAILABLE SIZES

Inside Diameter

Minimum Bend Radius

Working Pressure

Vacuum Rating

Weight

Standard Length

in / mm

72°F (22°C)
in / mm

72°F (22°C)
PSI / bar

72°F (22°C)
inHg / kPa

lb/ft / kg/m

ft / m

1-1/2 / 38.1

2.5 / 64

45 / 3.10

29.8 / 100.9

0.44 / 0.65

50, 100 / 15.2, 30.5

2 / 50.8

4.0 / 102

40 / 2.76

29.8 / 100.9

0.58 / 0.86

50, 100 / 15.2, 30.5

2-1/2 / 63.5

4.5 / 114

35 / 2.41

29.8 / 100.9

0.75 / 1.12

50, 100 / 15.2, 30.5

3 / 76.2

6.0 / 152

35 / 2.41

29.8 / 100.9

1.07 / 1.59

50, 100 / 15.2, 30.5

4 / 101.6

8.0 / 203

30 / 2.07

29.8 / 100.9

1.52 / 2.26

50, 100 / 15.2, 30.5

*Over flexing or repeated flexing of hose within 18″ (457 mm) of fitting is a common cause of hose failure. Installing a 12″-14″ (305-356 mm) section of our Banding Coil at the end of the hose should be considered. Kanaflex will not be responsible for damage to hose due to over flexing.
