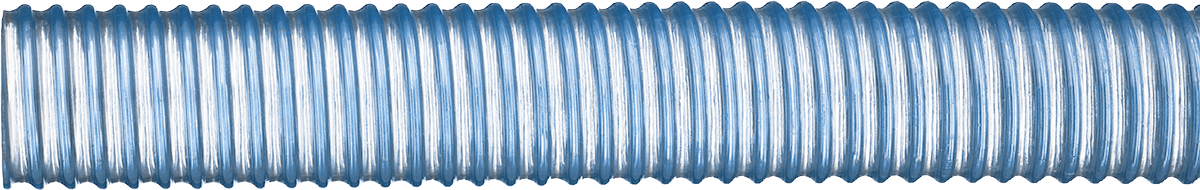

flexFOOD™ lite 200 (200SFG)

Food grade suction and discharge hose

Meticulously crafted to meet FDA and 3-A nontoxic standards. With a clear sidewall for visual inspection and a smooth bore ensuring precise flow and optimal drainability.

flexFOOD™ lite 200 (200SFG)

FEATURES

The food grade hose is constructed in compliance with FDA and 3-A nontoxic specifications. Clear sidewall permits visual check of material flow. The smooth bore allows for precise flow because no irregularities in the wall can cause interruptions. Smooth bore also promotes drainability.

APPLICATION

Dairy Processing, Food Processing, Pharma Processing, Plastic Processing, Pneumatic Conveying, Wine Processing

CONSTRUCTION

Produced entirely of compounds in compliance with FDA and 3-A nontoxic specifications, flexible PVC, rigid PVC helix, smooth bore, corrugated O.D.

TEMPERATURE RANGE

-13°F to 140°F / -25°C to 60°C

NOTE

Minimum Runs: 4" ID - 600 ft minimum run or 300 ft, 4 week lead time.

AVAILABLE SIZES

Inside Diameter

Minimum Bend Radius

Working Pressure

Vacuum Rating

Weight

Standard Length

in / mm

72°F (22°C)
in / mm

72°F (22°C)
PSI / bar

72°F (22°C)
inHg / kPa

lb/ft / kg/m

ft / m

1 / 25.4

1.5 / 38

50 / 3.45

29.8 / 100.9

0.18 / 0.27

100 / 30.5

1-1/4 / 31.8

2.0 / 51

45 / 3.10

29.8 / 100.9

0.22 / 0.33

100 / 30.5

1-1/2 / 38.1

2.5 / 64

45 / 3.10

29.8 / 100.9

0.35 / 0.52

100 / 30.5

2 / 50.8

4.0 / 102

40 / 2.76

29.8 / 100.9

0.50 / 0.74

100 / 30.5

2-1/2 / 63.5

4.5 / 114

35 / 2.41

29.8 / 100.9

0.68 / 1.01

100 / 30.5

3 / 76.2

6.0 / 152

35 / 2.41

29.8 / 100.9

1.00 / 1.49

100 / 30.5

4 / 101.6

8.0 / 203

30 / 2.07

29.8 / 100.9

1.52 / 2.26

100 / 30.5

*Over flexing or repeated flexing of hose within 18″ (457 mm) of fitting is a common cause of hose failure. Installing a 12″-14″ (305-356 mm) section of our Banding Coil at the end of the hose should be considered. Kanaflex will not be responsible for damage to hose due to over flexing.

COMPATIBLE ACCESSORIES
