Hoses

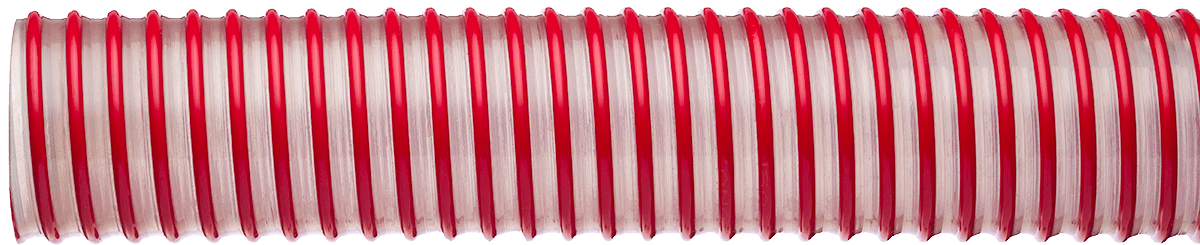

flexFLO™ lite U 100 (100 UCLRD)
Engineered for sub-zero flexibility. With a clear polyurethane-lined PVC tube, it ensures abrasion resistance, visual material flow check, and quiet operation. Ideal for air seeding and general agricultural applications.
FEATURES
Lightweight and flexible in sub-zero temperatures. Clear polyurethane lined PVC tube provides abrasion resistance, permits visual check of material flow, prevents material build up, and provides quiet operation. Corrugated PVC O.D. with
raised PVC helix for increased flexibility and easy drag.
APPLICATION
Ag General Use, Air Seeder
CONSTRUCTION
Flexible polyurethane lined PVC tube, rigid PVC helix, smooth bore, PVC corrugated O.D.
TEMPERATURE RANGE
-13,°F to ,140,°F
Got questions?
CONTACT USCONTACT USCONTACT USAVAILABLE SIZES
Inside Diameter
Minimum Bend Radius
Working Pressure
Vacuum Rating
Weight
Standard Length
Inches
72°F, inches
72°F, PSI
72°F, In Hg
Lbs/Ft
Ft
6
12
30
28
3.1
50
6
12
30
28
3.1
100
5
11
30
28
2.5
50
5
11
30
28
2.5
100
4
8
30
29.8
1.52
100
3
6
35
29.8
1
100
2.5
5
35
29.8
0.71
100
2
3
40
29.8
0.5
100
*Over flexing or repeated flexing of hose within 18″ of fitting is a common cause of hose failure. Installing a 12″-14″ section of our Banding Coil at the end of the hose should be considered. Kanaflex will not be responsible for damage to hose due to over flexing.
