Hoses

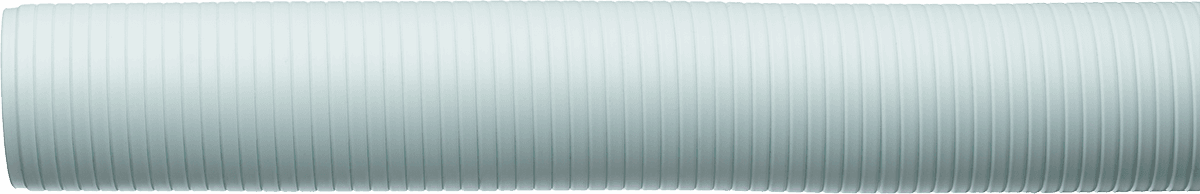

flexDUCT™ P (KNDT)
General polypropylene ducting and blower hose
A versatile solution with interlock construction for adjustable inside diameter. Ideal for general ducting, portable air conditioners, and clean room venting, as well as elbows for rigid pipe.
FEATURES
Interlock construction allows the inside diameter to be changed by twisting the hose, while still holding its shape.
APPLICATION
Portable Air Conditioner
CONSTRUCTION
Interlocked polypropylene
TEMPERATURE RANGE
-13,°F to ,180,°F
AVAILABLE SIZES
Inside Diameter
Minimum Bend Radius
Working Pressure
Vacuum Rating
Weight
Standard Length
Inches
72°F, inches
72°F, PSI
72°F, In Hg
Lbs/Ft
Ft
12
32
1.68
10
10
27
1.52
10
8
20
1.07
20
6
15
0.79
20
5
14
0.76
20
4
11
0.52
20
3
7
0.36
20
2.5
6
0.35
20
*Over flexing or repeated flexing of hose within 18″ of fitting is a common cause of hose failure. Installing a 12″-14″ section of our Banding Coil at the end of the hose should be considered. Kanaflex will not be responsible for damage to hose due to over flexing.
