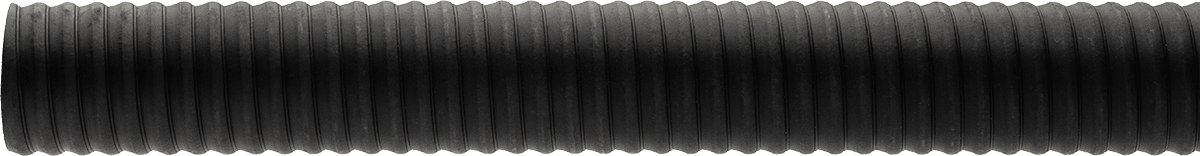

flexCHEM™ 220 (220RS)
Heavy-duty abrasion resistant chemical suction and discharge hose
An ideal solution for demanding environments. Lightweight and flexible, its SBR rubber blend with static carbon black ensures abrasion resistance and static dissipation. Perfect for construction dewatering, liquid waste, cesspool cleaning, septic handling, agricultural applications, and marine use. The smooth bore allows for precise flow without interruptions.
FEATURES
APPLICATION
CONSTRUCTION
TEMPERATURE RANGE
AVAILABLE SIZES
Inside Diameter
Minimum Bend Radius
Working Pressure
Vacuum Rating
Weight
Standard Length
in / mm
72°F (22°C)
in / mm
72°F (22°C)
PSI / bar
72°F (22°C)
inHg / kPa
lb/ft / kg/m
ft / m
1-1/2 / 38.1
3.0 / 76
50 / 3.45
29.8 / 100.9
0.50 / 0.74
100 / 30.5
2 / 50.8
4.0 / 102
50 / 3.45
29.8 / 100.9
0.74 / 1.10
100 / 30.5
2-1/2 / 63.5
5.0 / 127
50 / 3.45
29.8 / 100.9
1.01 / 1.50
100 / 30.5
3 / 76.2
6.0 / 152
43 / 2.96
29.8 / 100.9
1.30 / 1.93
100 / 30.5
4 / 101.6
9.0 / 229
38 / 2.62
29.8 / 100.9
2.01 / 2.99
100 / 30.5
6 / 152.4
15.0 / 381
23 / 1.59
28.0 / 94.8
3.37 / 5.02
60, 100 / 18.3, 30.5
*Over flexing or repeated flexing of hose within 18″ (457 mm) of fitting is a common cause of hose failure. Installing a 12″-14″ (305-356 mm) section of our Banding Coil at the end of the hose should be considered. Kanaflex will not be responsible for damage to hose due to over flexing.
