Hoses

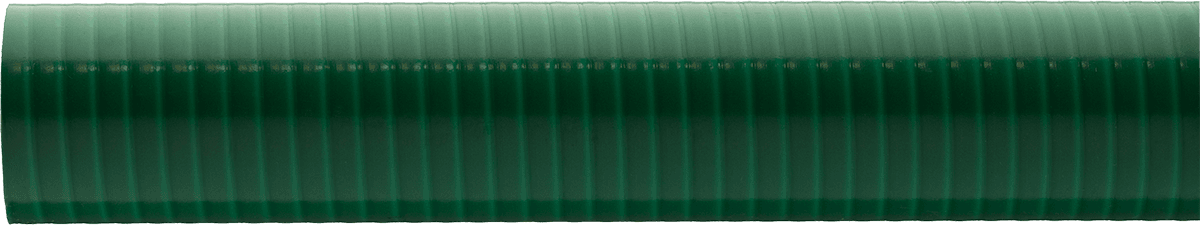

flexFLO™ 114 (114CL/114GR)
An economical solution for various agricultural applications such as air seeder, fertilizer sprayer, and irrigation. Lightweight, flexible, and featuring a clear sidewall for visual inspection, it ensures precise flow and optimal drainability.
FEATURES
Lightweight and flexible water and suction hose. Clear sidewall permits visual check of material flow. The smooth bore allows for precise flow because no irregularities in the
wall can cause interruptions. Smooth bore also promotes drainability.
APPLICATION
Ag General Use, Air Seeder, Bilge, Fertilizer Sprayer, Irrigation, Marine General Use, Mining General Use, Trash Pumping, Waste Management General Use, Water Pumping, Water Suction
CONSTRUCTION
Flexible PVC, rigid PVC helix, smooth bore, smooth O.D.
TEMPERATURE RANGE
-13,°F to ,140,°F
Got questions?
CONTACT USCONTACT USCONTACT USAVAILABLE SIZES
Inside Diameter
Minimum Bend Radius
Working Pressure
Vacuum Rating
Weight
Standard Length
Inches
72°F, inches
72°F, PSI
72°F, In Hg
Lbs/Ft
Ft
4
10
45
29.8
1.43
100
3
8
50
29.8
0.81
100
2.5
6
60
29.8
0.66
100
2
5
60
29.8
0.46
100
1.5
4
65
29.8
0.28
100
*Over flexing or repeated flexing of hose within 18″ of fitting is a common cause of hose failure. Installing a 12″-14″ section of our Banding Coil at the end of the hose should be considered. Kanaflex will not be responsible for damage to hose due to over flexing.
