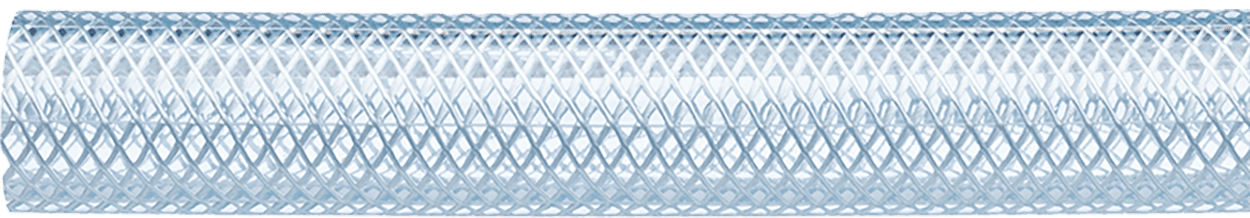

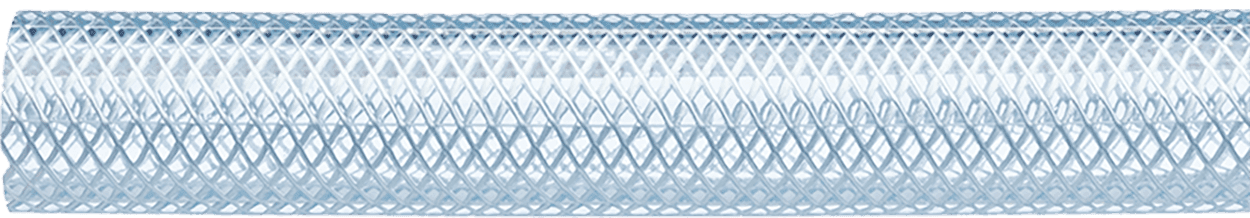

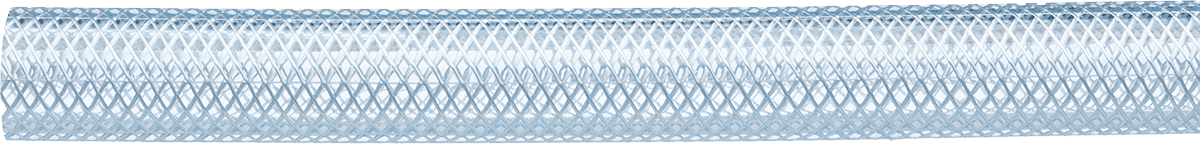

flexFOOD 215 CB (KRCB)
Clear, flexible PVC food and beverage hose
A food-grade suction and discharge hose designed for versatile use across construction, industrial, and agricultural applications, including food, beverage dispensing, and air and water lines.
FEATURES
This hose is made from FDA, 3A, and NSF-approved clear PVC for safe food contact and is NSF-51 compliant for food equipment use. Reinforced with high-strength yarn for durability, it offers flexibility, easy handling, and a smooth interior for efficient flow and cleaning. The lightweight design resists kinking, crushing, and collapse, while the transparent wall allows quick visual inspection.
APPLICATION
Dairy Processing, Food Processing, Pharma Processing, Pneumatic Conveying, Wine Processing
CONSTRUCTION
Produced entirely of compounds in compliance with FDA, 3-A nontoxic and NSF specifications, flexible PVC, synthetic braiding, smooth bore, smooth O.D.
TEMPERATURE RANGE
-13,°F to ,140,°F
AVAILABLE SIZES
Inside Diameter
Minimum Bend Radius
Working Pressure
Vacuum Rating
Weight
Standard Length
Inches
72°F, inches
72°F, PSI
72°F, In Hg
Lbs/Ft
Ft
0.1875
246
0.05
300
0.25
246
0.06
300
0.3125
245
0.08
300
0.375
226
0.1
300
0.5
216
0.13
300
0.625
206
0.18
200
0.75
157
0.21
200
1
123
0.31
200
*Over flexing or repeated flexing of hose within 18″ of fitting is a common cause of hose failure. Installing a 12″-14″ section of our Banding Coil at the end of the hose should be considered. Kanaflex will not be responsible for damage to hose due to over flexing.
