Hoses

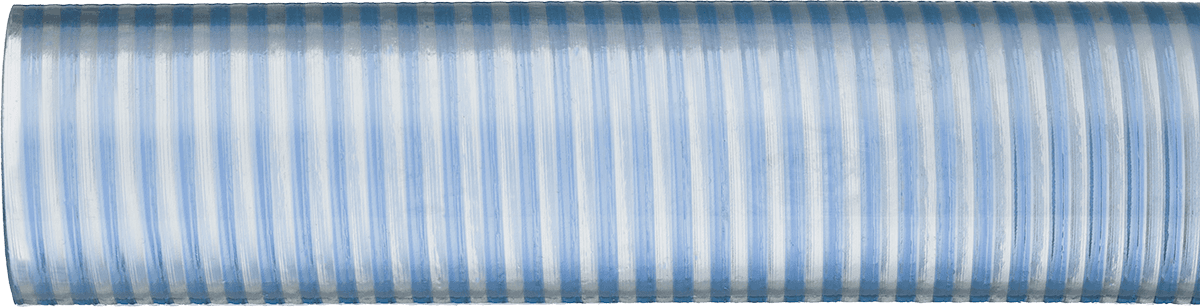

flexFOOD™ 210 (210HFG)

Meticulously crafted to meet FDA and 3-A nontoxic standards. Ideal for pneumatic conveying of food grade materials With a clear sidewall for visual inspection and a smooth bore ensuring precise flow and optimal drainability.

flexFOOD™ 210 (210HFG)

FEATURES

The food grade hose is constructed in compliance with FDA and 3-A nontoxic specifications. Clear sidewall permits visual check of material flow. The smooth bore allows for precise flow because no irregularities in the wall can cause interruptions. Smooth bore also promotes drainability.

APPLICATION

Dairy Processing, Food Processing, Pharma Processing, Plastic Processing, Pneumatic Conveying, Wine Processing

CONSTRUCTION

Produced entirely of compounds in compliance with FDA and 3-A nontoxic specifications, flexible PVC, rigid PVC helix, smooth bore, smooth O.D.

TEMPERATURE RANGE

-13,°F to ,140,°F

Got questions?

CONTACT USCONTACT USCONTACT US
Download Data Sheet

AVAILABLE SIZES

Inside Diameter

Minimum Bend Radius

Working Pressure

Vacuum Rating

Weight

Standard Length

Inches

72°F, inches

72°F, PSI

72°F, In Hg

Lbs/Ft

Ft

4

9.1

55

29.8

2.01

100

3

7

62

29.8

1.21

100

2.5

5

72

29.8

1.01

100

2

3.9

72

29.8

0.74

100

1.5

2.8

72

29.8

0.44

100

1.25

2.7

79

29.8

0.37

100

1

1.9

86

29.8

0.26

100

*Over flexing or repeated flexing of hose within 18″ of fitting is a common cause of hose failure. Installing a 12″-14″ section of our Banding Coil at the end of the hose should be considered. Kanaflex will not be responsible for damage to hose due to over flexing.
